PipeMAB 525
AWARD-WINNING PIPE DRILLING AND TAPPING
The PipeMAB 525 is an award-winning magnetic drilling and tapping machine designed for pipes and curved surfaces. Equipped with Morse Taper 2, it offers high tool compatibility and precision. Its patented dual-permanent magnet system adapts automatically to pipes from 75 mm (3”) diameter and provides up to 1020 kg magnetic holding force. Ideal for drilling and tapping, inside or outside pipe surfaces, even on 3 mm thin material. The reversible motor, variable speed control and extended stroke make it perfect for pipeline construction, maintenance and metal fabrication.
The PipeMAB 525 is an award-winning magnetic drilling and tapping machine designed for pipes and curved surfaces. Equipped with Morse Taper 2, it offers high tool compatibility and precision. Its patented dual-permanent magnet system adapts automatically to pipes from 75 mm (3”) diameter and provides up to 1020 kg magnetic holding force. Ideal for drilling and tapping, inside or outside pipe surfaces, even on 3 mm thin material. The reversible motor, variable speed control and extended stroke make it perfect for pipeline construction, maintenance and metal fabrication.
-
Made in Germany -
Drilling, Tapping, Countersink & Reaming
-
Morse Taper 3
-
Patented Permanent Magnet
-
Strong Magnetic Grip On Pipes
-
Works On Curved And Flat Surfaces
-
Suitable For Pipes From 85 mm Diameter
-
Holds On Material As Thin As 3 mm
-
Elongated Tool Holder For Full Stroke Use
-
Reversible Motor
-
Variable Speed & Torque Control
-
Full Wave Control Electronics
-
Overheat Protection
-
Safety Friction Clutch
-
Carbon Brush Wear Indicator
-
Oil Bath Gearbox
-
Permanent Internal Lubrication
-
Heavy Duty Carry Case
Technical Specifications
-
CORE DRILL MAX. Ø HSS/TCT:
60 mm (2-3/8") -
CORE DRILL CUTTING DEPTH MAX.:
75 mm (3″) -
THREAD CUTTING Ø MAX.:
M20 (3/4") -
TWIST DRILL Ø MAX.:
20 mm (1") -
REAMING Ø MAX.:
20 mm (1") -
COUNTERSINKING Ø MAX.:
50 mm (2-1/2") -
MOTOR OUTPUT:
1600 Watts (14.50 Amp) -
VOLTAGE:
230 Volts or 110/125 Volts AC -
STROKE:
160 mm (6-¼″) -
WEIGHT:
16 Kg. (35 lbs.) -
SPINDLE TAPER:
Morse Taper MT3 -
ARBOR:
Industrial Arbor MT3 -
SPEED GEARS:
2 -
SPEED RANGE (MIN-1):
70-280; 180-580 -
VARIABLE SPEED CONTROL:
-
VARIABLE TORQUE CONTROL:
-
OIL BATH GEARBOX:
-
REVERSIBLE MOTOR:
-
FULL WAVE CONTROL ELECTRONICS:
-
OVERHEAT PROTECTION:
-
CARBON BRUSH WEAR INDICATOR:
-
SAFETY CLUTCH:
-
PREMANENT MAGNET:
Scope of Delivery
-
CARRY CASE
ZHK 800 -
EJECTOR PIN
ZAK 75, 100 -
ARBOR
ZSS 300 -
TAPPING ADAPTER
ZGA 010, 012, 016 -
GEAR-RIM DRILL CHUCK
ZBK 113 -

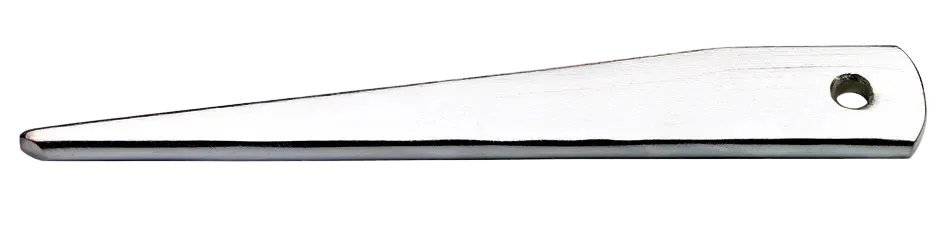

TAPER DRIFT / ADAPTER
ZKD 316 -
EJECTOR DRIFT
ZAS 003 -
SAFETY LASHING STRAP
4000161 -
ALLEN KEY
8010301(3mm) -
USER MANUAL
