MAB 845

THE HEAVY-DUTY POWERHOUSE FOR PRECISION & PERFORMANCE WITH SWIVEL BASE

The MAB 845 magnetic core drilling machine is a heavy-duty powerhouse for demanding industrial applications. Designed for core drilling up to Ø 100 mm and cutting depths of 110 mm, it also supports tapping up to M30 with its MT3 Morse taper. Made in Germany, it delivers exceptional power, precision, and long-term reliability.

The innovative Swivel Base allows 30° movement left or right and 20 mm forward or backward for fast, precise centering. Ideal for vertical and overhead drilling, the MAB 845 ensures maximum safety, comfort, and control in tough industrial environments.

Made in Germany
Swivel Base
Drilling, Tapping, Countersink & Reaming
Morse Taper 3
Reversible Motor

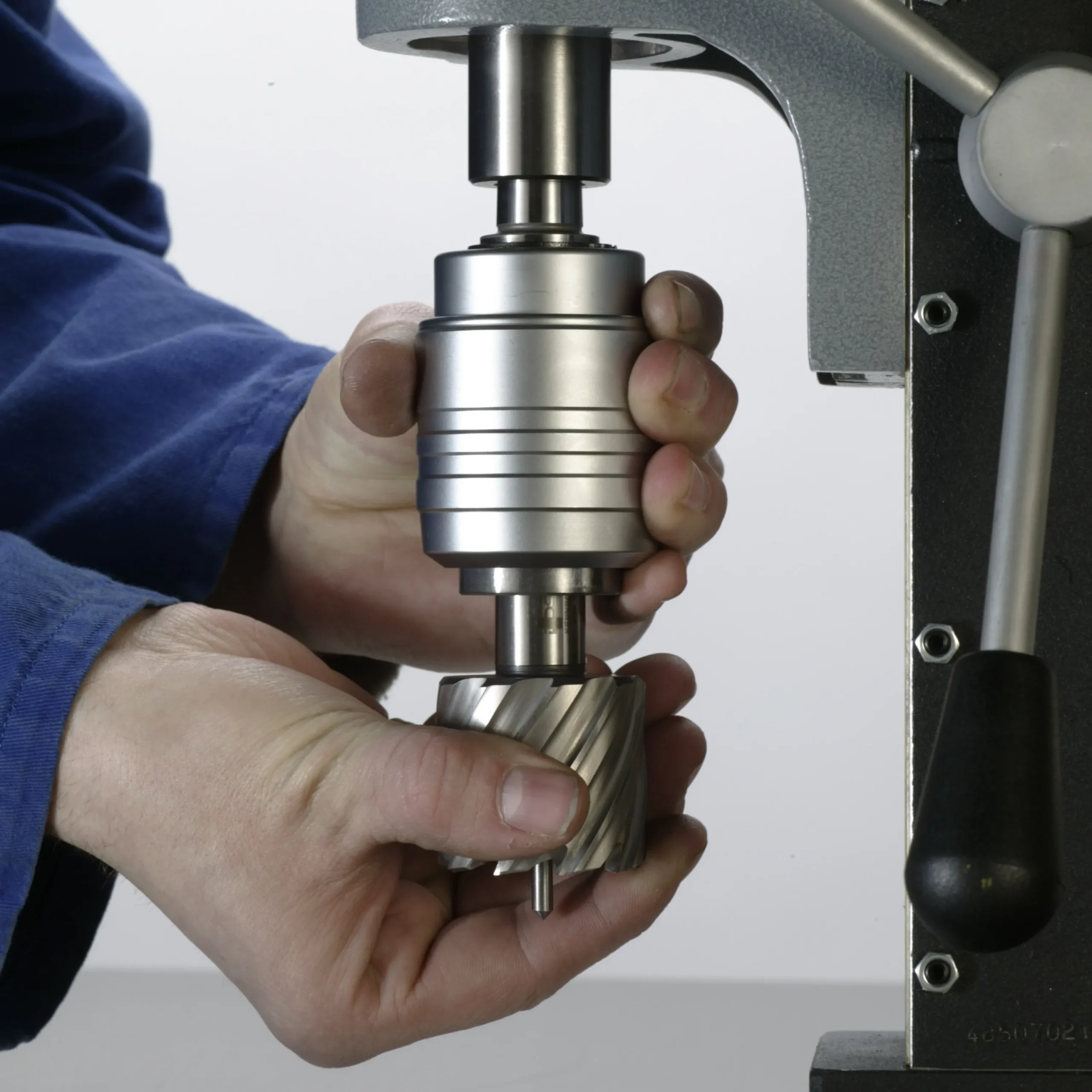

KEYLESS Tool Holder
Variable Speed Control
Variable Torque Control
Full Wave Control Electronics
Magnet Adhesion Indicator
Overheat Protection
Safety Friction Clutch
Carbon Brush Wear Indicator
Oil Bath Gearbox
Integrated Coolant Tank
Internal Motor Cabling
Double Coil Magnet
Heavy Duty Carry Case with Wheels

Technical Specifications

CORE DRILL MAX. Ø HSS/TCT:
100 mm (4") | 60 mm (2-3/8")
CORE DRILL CUTTING DEPTH MAX.:
55 mm (2-3/8") | 100 mm (4")
THREAD CUTTING Ø MAX.:
M30 (1-1/8")
TWIST DRILL Ø MAX.:
31.75 mm (1-1/4")
REAMING Ø MAX.:
31.75 mm (1-1/4")
COUNTERSINKING Ø MAX.:
50 mm (2-1/2")
MOTOR OUTPUT :
1800 Watts (16 Amp)
VOLTAGE:
230 Volts or 110/125 Volts AC
STROKE:
255 mm (10")
WEIGHT:
25 Kg. (55 lbs.)
SPINDLE TAPER:
Morse Taper MT3
KEYLESS ARBOR ( 19MM WELDON ¾“):
SPEED GEARS:
4
SPEED RANGE (MIN-1):
40-110; 65-175; 140-360; 220-600
VARIABLE SPEED CONTROL:
VARIABLE TORQUE CONTROL:
OIL BATH GEARBOX:
REVERSIBLE MOTOR:
FULL WAVE CONTROL ELECTRONICS:
MAGNET INDICATOR:
OVERHEAT PROTECTION:
CARBON BRUSH WEAR INDICATOR:
SAFETY CLUTCH:
SWIVEL BASE:

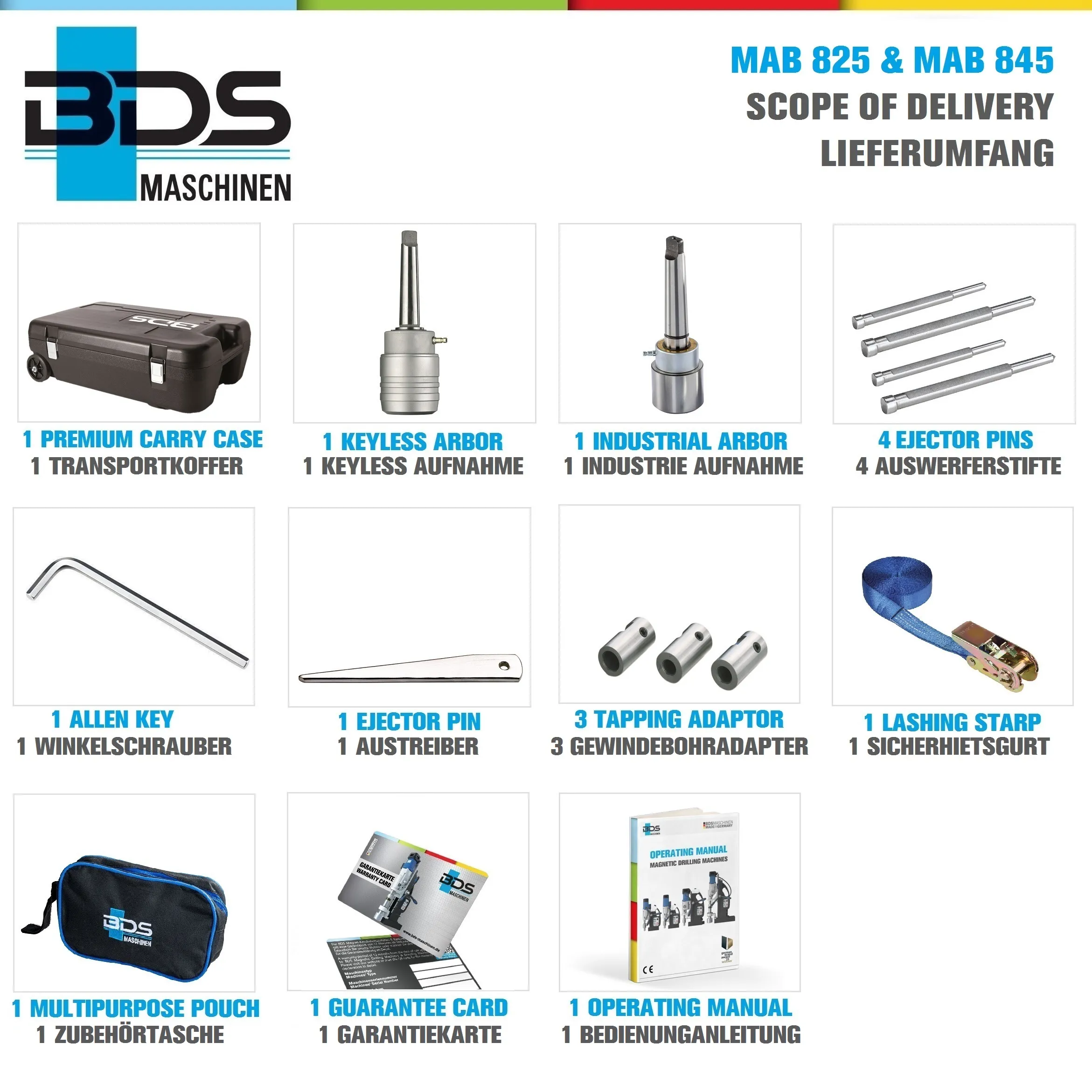

Scope of Delivery

CARRY CASE
ZHK 825
EJECTOR PIN
ZAK 075, 090, 100, 120
ARBOR
ZSS 300 + ZIA 332-KN
EJECTOR DRIFT
ZAS 003
SAFETY LASHING STRAP
4000161
ALLEN KEY
911058(6mm) + für MAB 845: 8010381(8mm)
USER MANUAL
