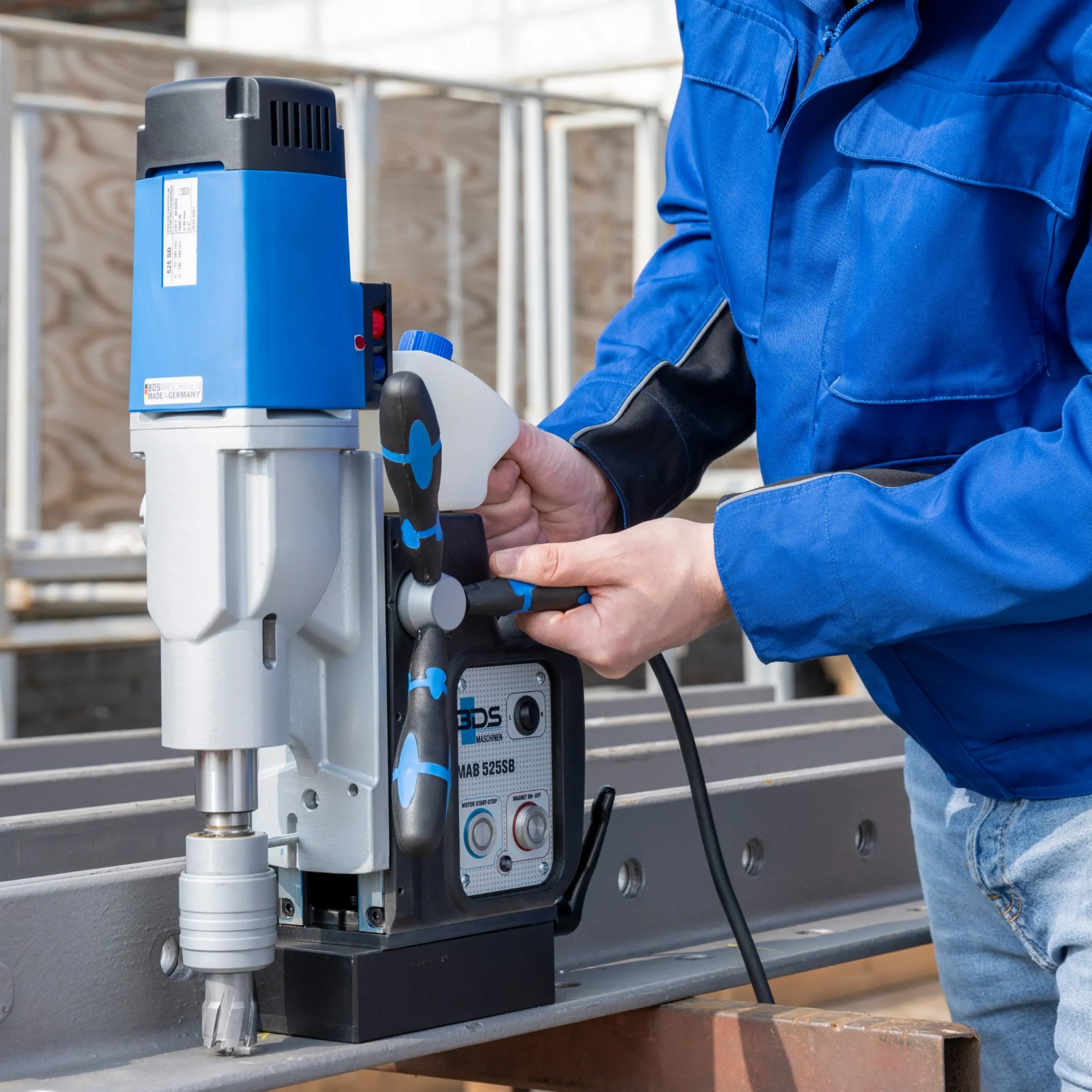

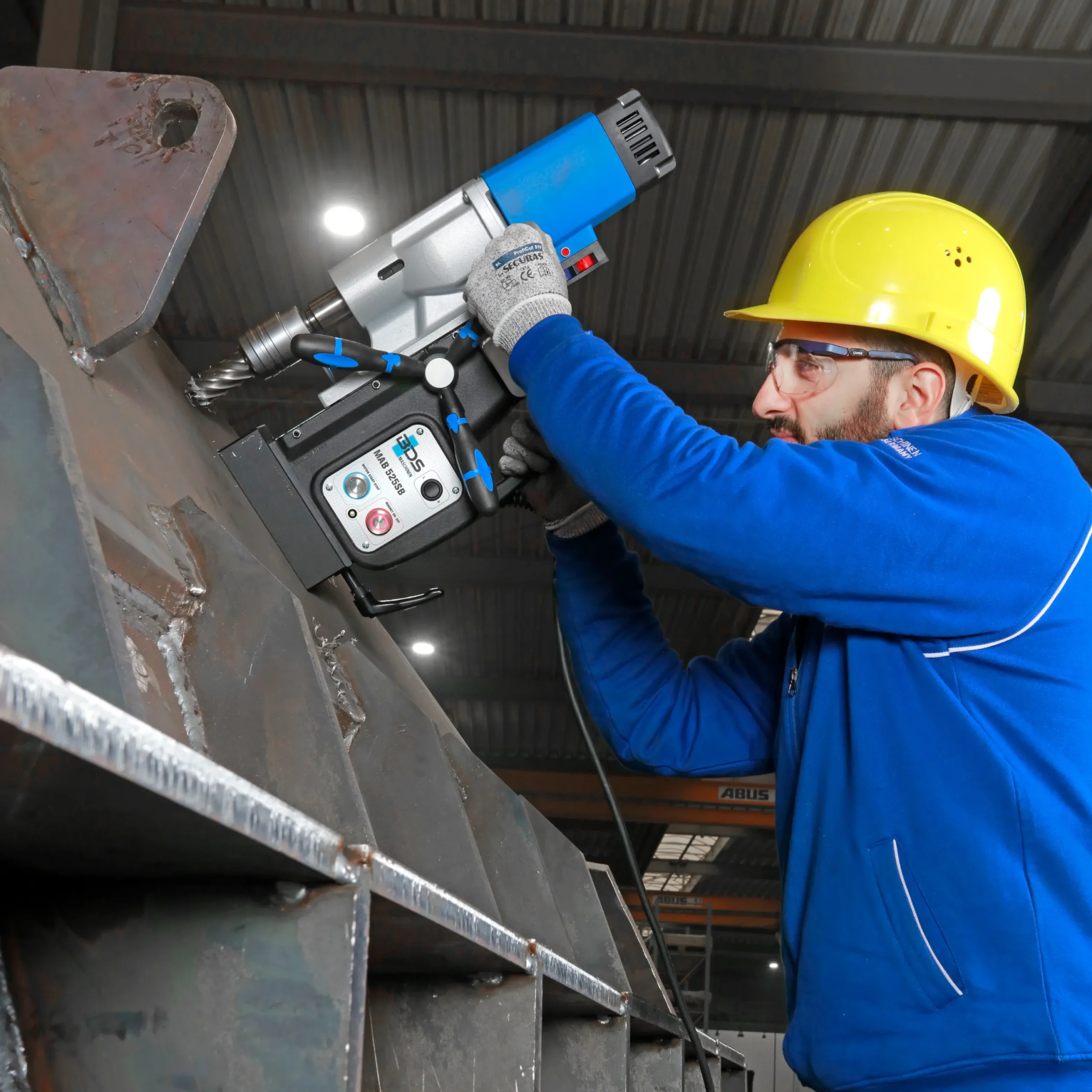

MAB 525

Technical Specifications

•
  CORE DRILL MAX. Ø HSS/TCT:
  50/60 mm (2-3/8")
•
  CORE DRILL CUTTING DEPTH MAX.:
  75 mm (3″)
•
  THREAD CUTTING Ø MAX.:
  M20 (3/4")
•
  TWIST DRILL Ø MAX.:
  20 mm (1")
•
  REAMING Ø MAX.:
  20 mm (1")
•
  COUNTERSINKING Ø MAX.:
  50 mm (2-1/2")
•
  MOTOR OUTPUT :
  1600 Watts (14.50 Amp)
•
  VOLTAGE:
  230 Volts or 110/125 Volts AC
•
  STROKE:
  160 mm (6-¼″)
•
  WEIGHT:
  16 Kg. (35 lbs.)
•
  SPINDLE TAPER:
  Morse Taper MT3
•
  KEYLESS ARBOR ( 19MM WELDON ¾“):

•
  SPEED GEARS:
  2
•
  SPEED RANGE (MIN-1):
  70-280; 180-580
•
  VARIABLE SPEED CONTROL:

•
  VARIABLE TORQUE CONTROL:

•
  OIL BATH GEARBOX:

•
  REVERSIBLE MOTOR:

•
  FULL WAVE CONTROL ELECTRONICS:

•
  MAGNET INDICATOR:

•
  OVERHEAT PROTECTION:

•
  CARBON BRUSH WEAR INDICATOR:

•
  SAFETY CLUTCH:

•
  SWIVEL BASE:
  No (optional: MAB 525 SB)
