MAB 2300

MAXIMUM POWER FOR LARGE DIAMETERS

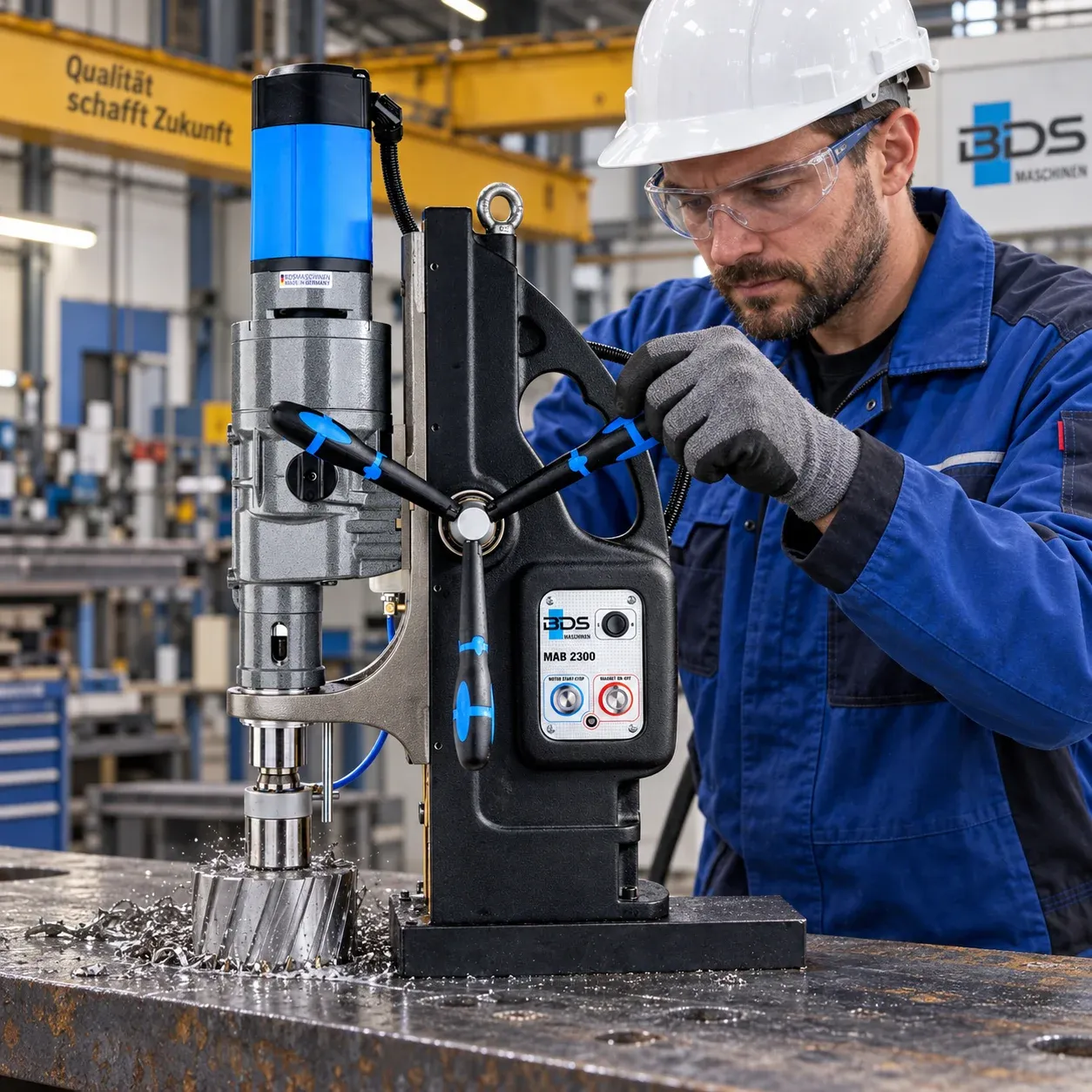

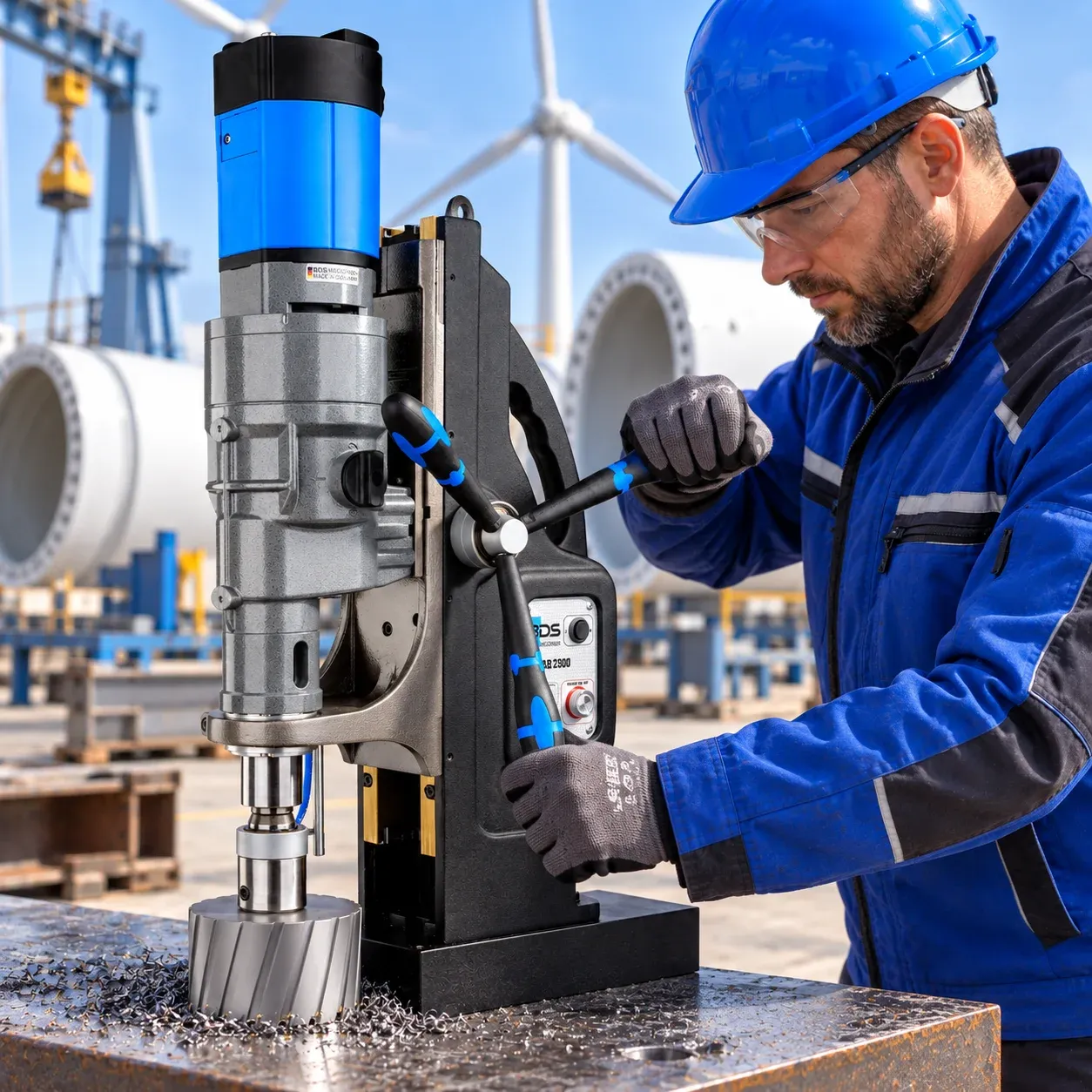

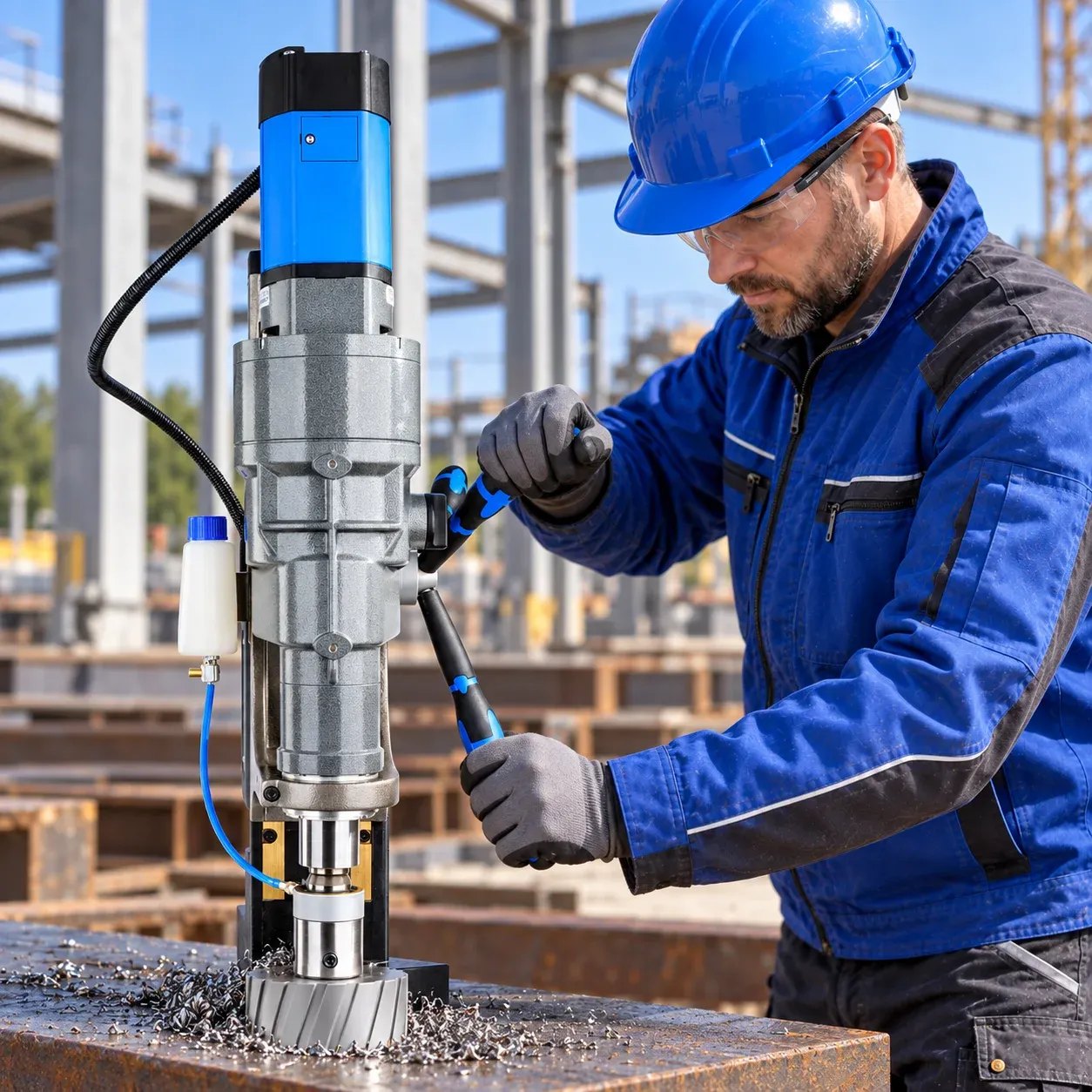

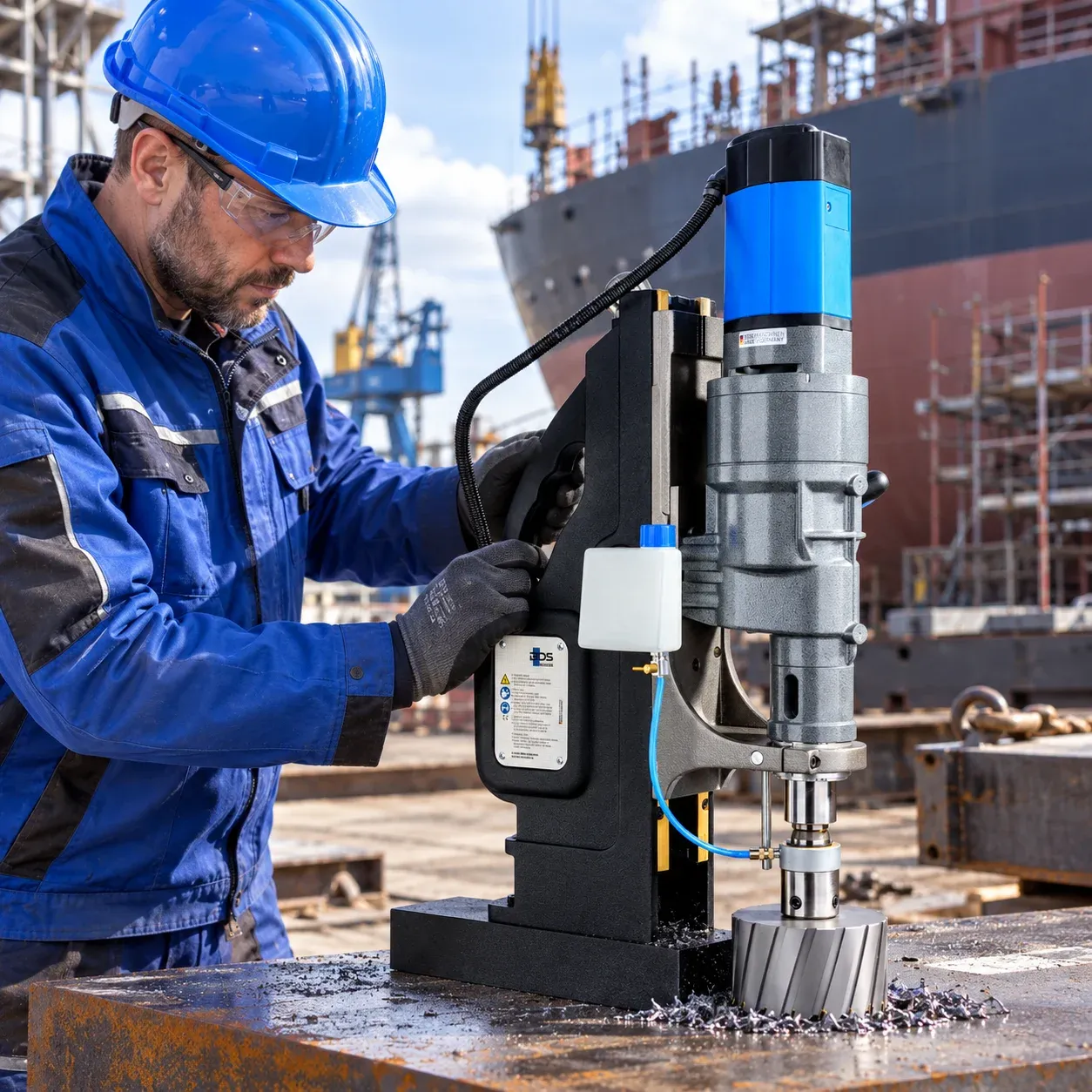

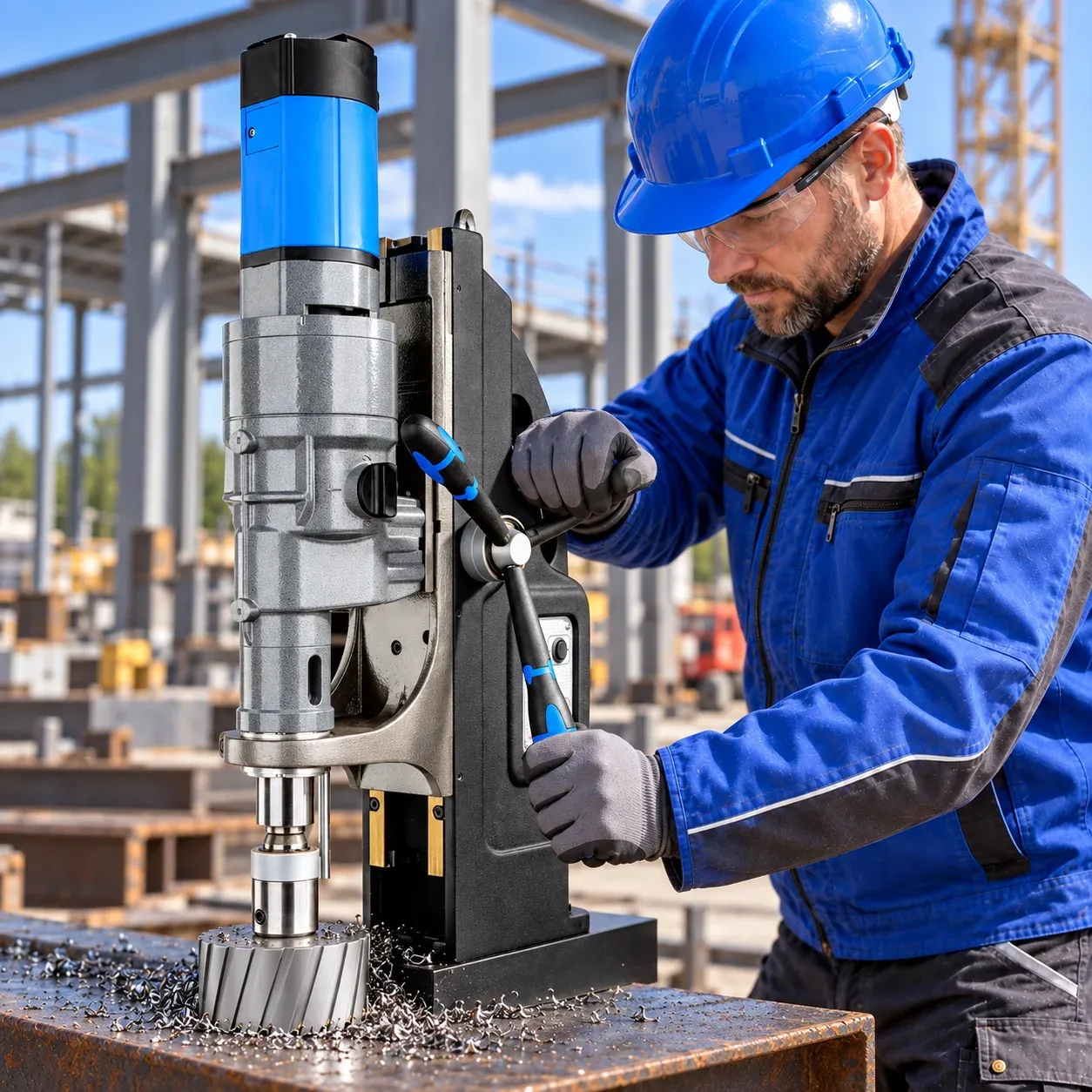

Made in Germany, the MAB 2300 Magnetic Drilling & Tapping Machine delivers powerful performance for demanding applications. Its 2,800 W motor supports core drilling up to Ø200 mm at 55 mm cutting depth, or Ø130 mm at 110 mm depth, alongside versatile thread cutting, twist drilling, reaming and countersinking capabilities.

A three-speed gearbox and variable speed control offer speeds from 25 to 200 rpm. The MT4 spindle and 310 mm stroke provide versatility, while clockwise and anticlockwise rotation support tapping. Full-wave control electronics, a safety clutch, magnet indicator and overheat protection deliver precise, controlled operation for demanding professional metalworking tasks.

Made in Germany
Drilling, Tapping, Countersink & Reaming
New Heavy-Duty Gearbox
Morse Taper 4
Reversible Motor
Industrial Tool Holder
Variable Speed Control
Full Wave Control Electronics
Magnet Adhesion Indicator
Overheat Protection
Safety Friction Clutch
Oil Bath Gearbox
Integrated Coolant Tank
Permanent Internal Lubrication
Triple Coil Magnet
Heavy Duty Carry Case with Wheels

Technical Specifications

CORE DRILL MAX. Ø HSS/TCT:
200 mm (8")
CORE DRILL CUTTING DEPTH MAX.:
110 mm (3'')
THREAD CUTTING Ø MAX.:
M50 (2")
TWIST DRILL Ø MAX.:
55 mm (2-3/8")
REAMING Ø MAX.:
60 mm (2-3/8")
COUNTERSINKING Ø MAX.:
90 mm (3 9/16″)
MOTOR OUTPUT :
2800 Watts (25 Amp)
VOLTAGE:
230 Volts or 110/125 Volts AC
STROKE:
310 mm (12")
WEIGHT:
52 Kg. (115 lbs.)
SPINDLE TAPER:
Morse Taper MT4
KEYLESS ARBOR ( 19MM WELDON ¾“):
-
SPEED GEARS:
3
SPEED RANGE (MIN-1):
25-50; 50-100; 100-200
VARIABLE SPEED CONTROL:
VARIABLE TORQUE CONTROL:
-
OIL BATH GEARBOX:
REVERSIBLE MOTOR:
FULL WAVE CONTROL ELECTRONICS:
MAGNET INDICATOR:
OVERHEAT PROTECTION:
CARBON BRUSH WEAR INDICATOR:
-
SAFETY CLUTCH:
SWIVEL BASE:
-

Scope of Delivery

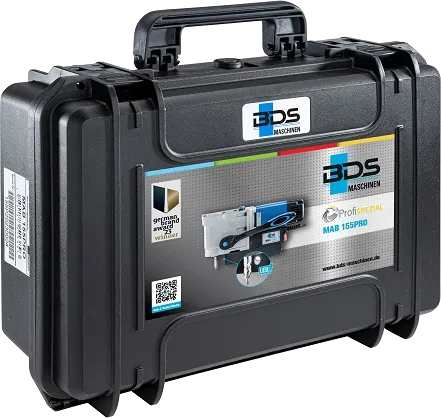

CARRY CASE
ZHK 1500
EJECTOR PIN
ZAK 075, 090, 100, 120
TAPER DRIFT / ADAPTER
ZIA 419-KN, ZIA 432-KN
EJECTOR DRIFT
ZAS 004
SAFETY LASHING STRAP
4000161
ALLEN KEY
911058(6mm) 8010251(4mm), 8010381(8mm)
USER MANUAL
