MAB 155PRO

THE SMALL MACHINE WITH HUGE POWER, NOW WITH LED SPOTLIGHT!

Discover the award-winning drilling power of the BDS Machines MAB 155PRO. Engineered in Germany, this ultra-compact horizontal magnetic drilling machine delivers 1050 W of high-performance in only 11 kg weight and 180 mm height—ideal for confined spaces. With its integrated LED spotlight, ratchet feed and angular gearbox it ensures precision and efficiency on steel construction and metal fabrication jobs. Trusted by professionals for its exceptional machining capabilities and reliability, the MAB 155PRO stands out as the best compact solution for heavy-duty industrial drilling tasks.

Discover the award-winning drilling power of the BDS Machines MAB 155PRO. Engineered in Germany, this ultra-compact horizontal magnetic drilling machine delivers 1050 W of high-performance in only 11 kg weight and 180 mm height—ideal for confined spaces. With its integrated LED spotlight, ratchet feed and angular gearbox it ensures precision and efficiency on steel construction and metal fabrication jobs. Trusted by professionals for its exceptional machining capabilities and reliability, the MAB 155PRO stands out as the best compact solution for heavy-duty industrial drilling tasks.

German Design Award Winner
Only 180 mm High

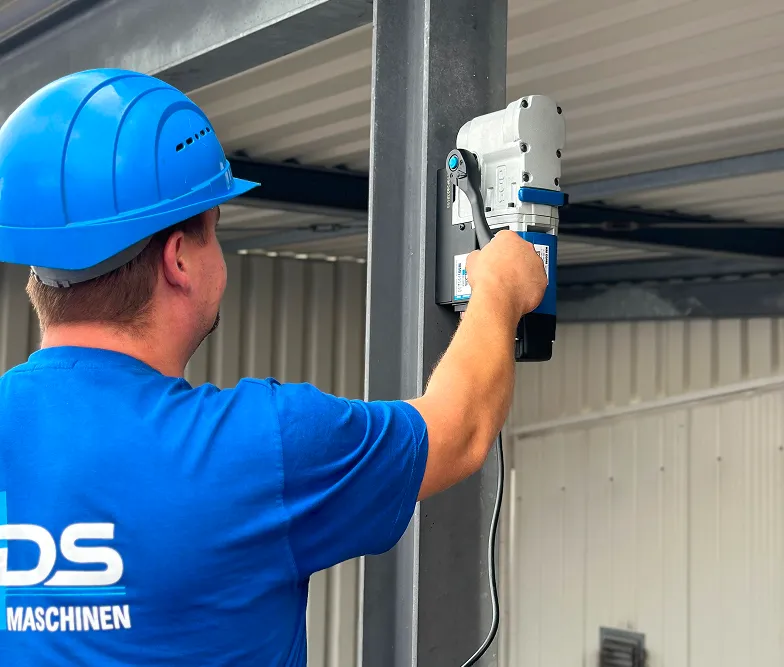

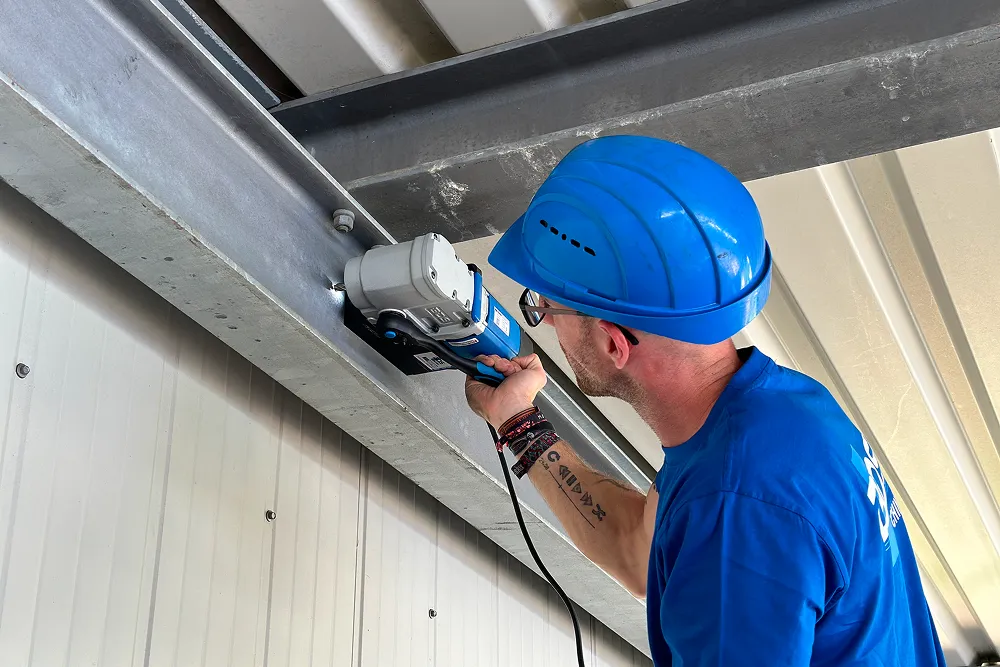

Horizontal Drilling Design

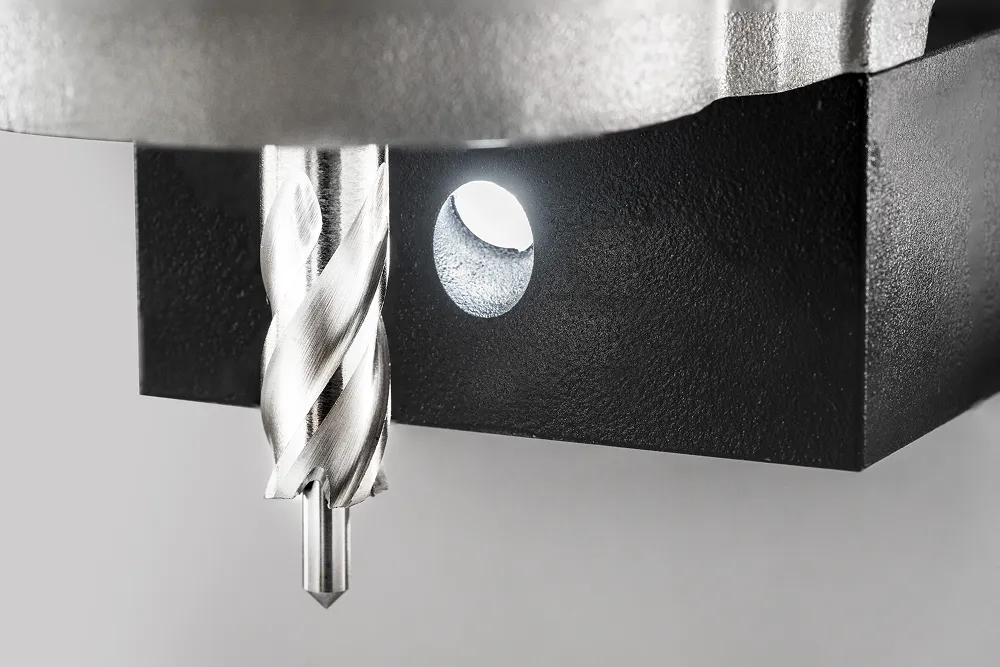

Integrated LED Pilot Light
Just 11 kg Weight
Robust Angular Gearbox
Ratchet Feed

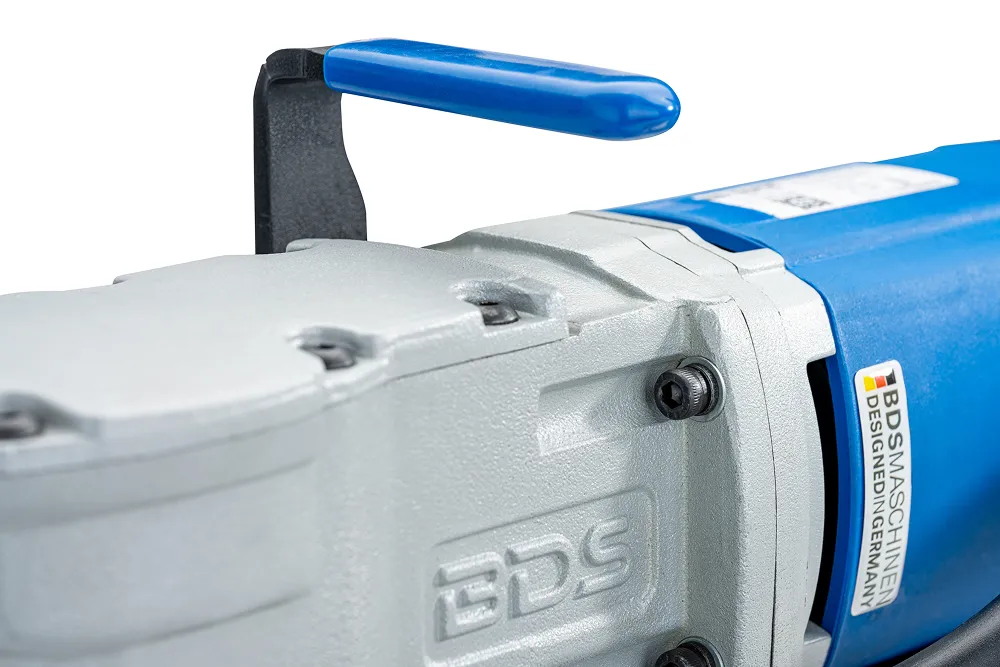

Extra handle for easy carrying
Heavy Duty Carry Case
Double Coil Magnet

Technical Specifications

CORE DRILL MAX. Ø HSS/TCT:
35 mm (1-3/8″)
CORE DRILL CUTTING DEPTH MAX.:
30 mm (1-3/16'') /40 mm*
TWIST DRILL Ø MAX.:
13 mm (1/2'') With SPS Weldon Shank Twist Drills
MOTOR OUTPUT:
1050 Watt (8.2 Amp)
VOLTAGE:
230 Volts or 110/125 Volts AC
STROKE:
39 mm (1-1/2″)
WEIGHT:
11 Kg. (24 lbs.)
SPINDLE TAPER:
Direct
ARBOR:
Direct arbor 19 mm Weldon ¾“
SPEED GEARS:
1
SPEED RANGE (MIN-1):
320
LED SPOTLIGHT:
INTERNAL MOTOR CABLE:

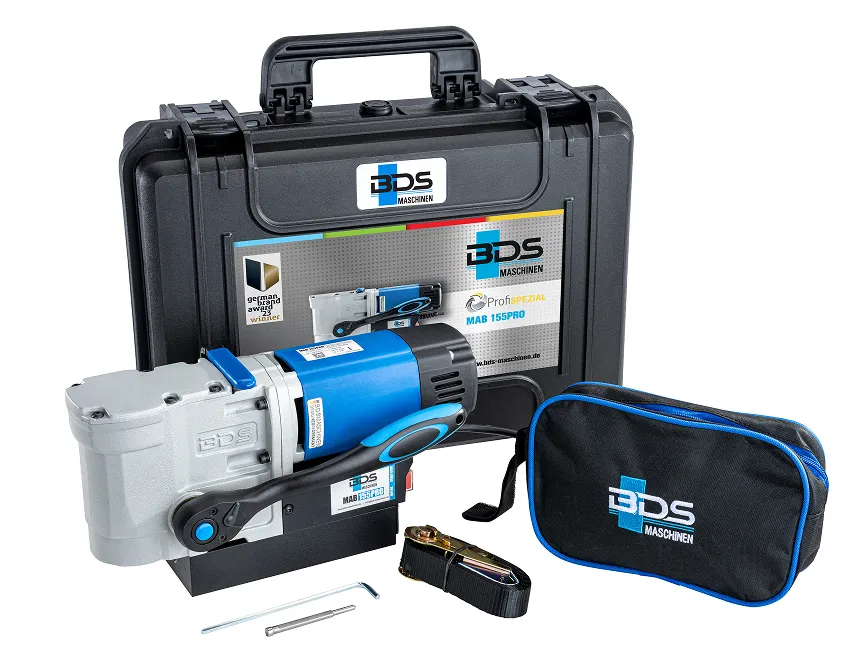

Scope of Delivery

CARRY CASE
ZHK 155
EJECTOR PIN
ZAK 075
SAFETY LASHING STRAP
4000161
ALLEN KEY
8010311 (5 mm)
USER MANUAL
