MAB 1300

WORLD-CLASS PERFORMANCE FOR LARGE DIAMETERS

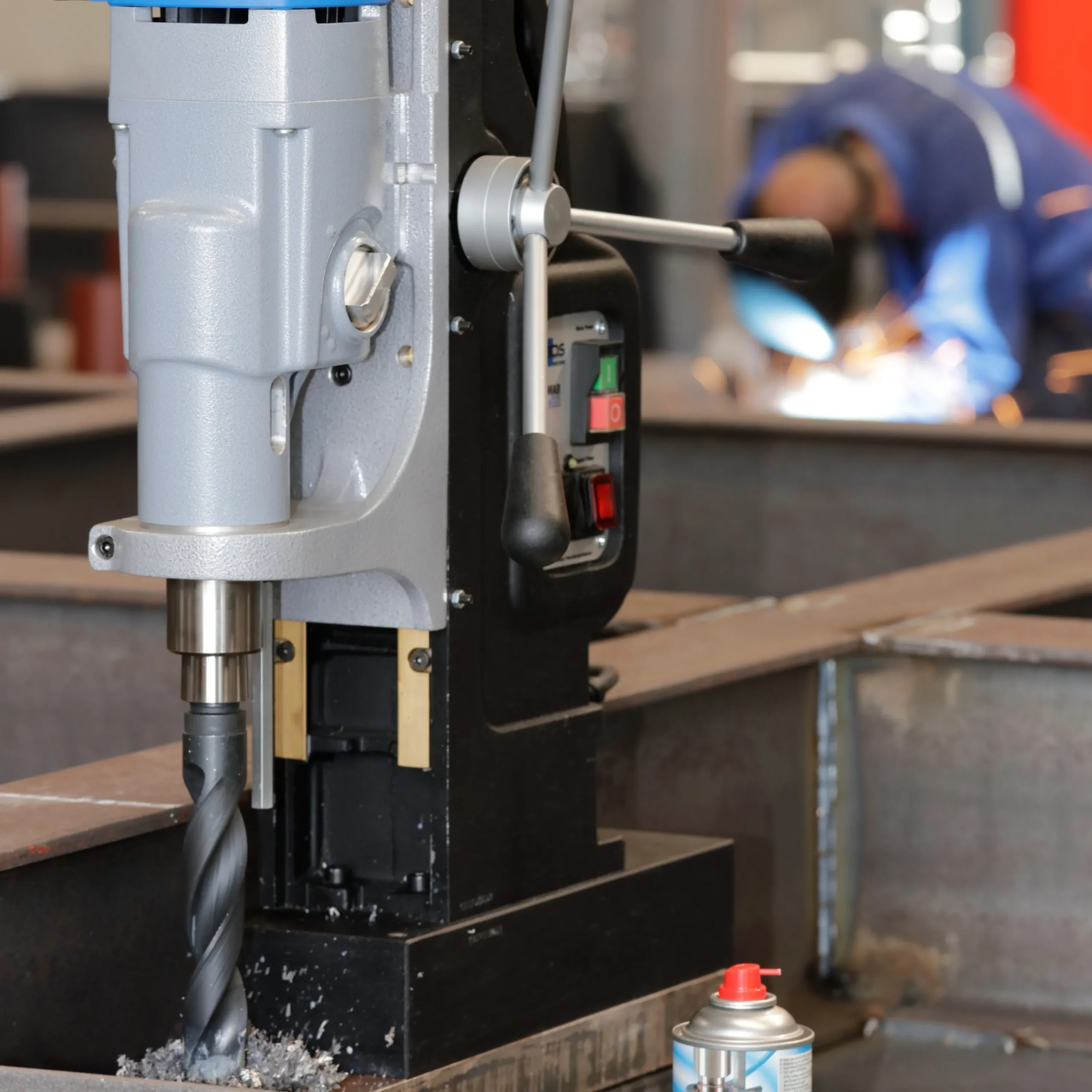

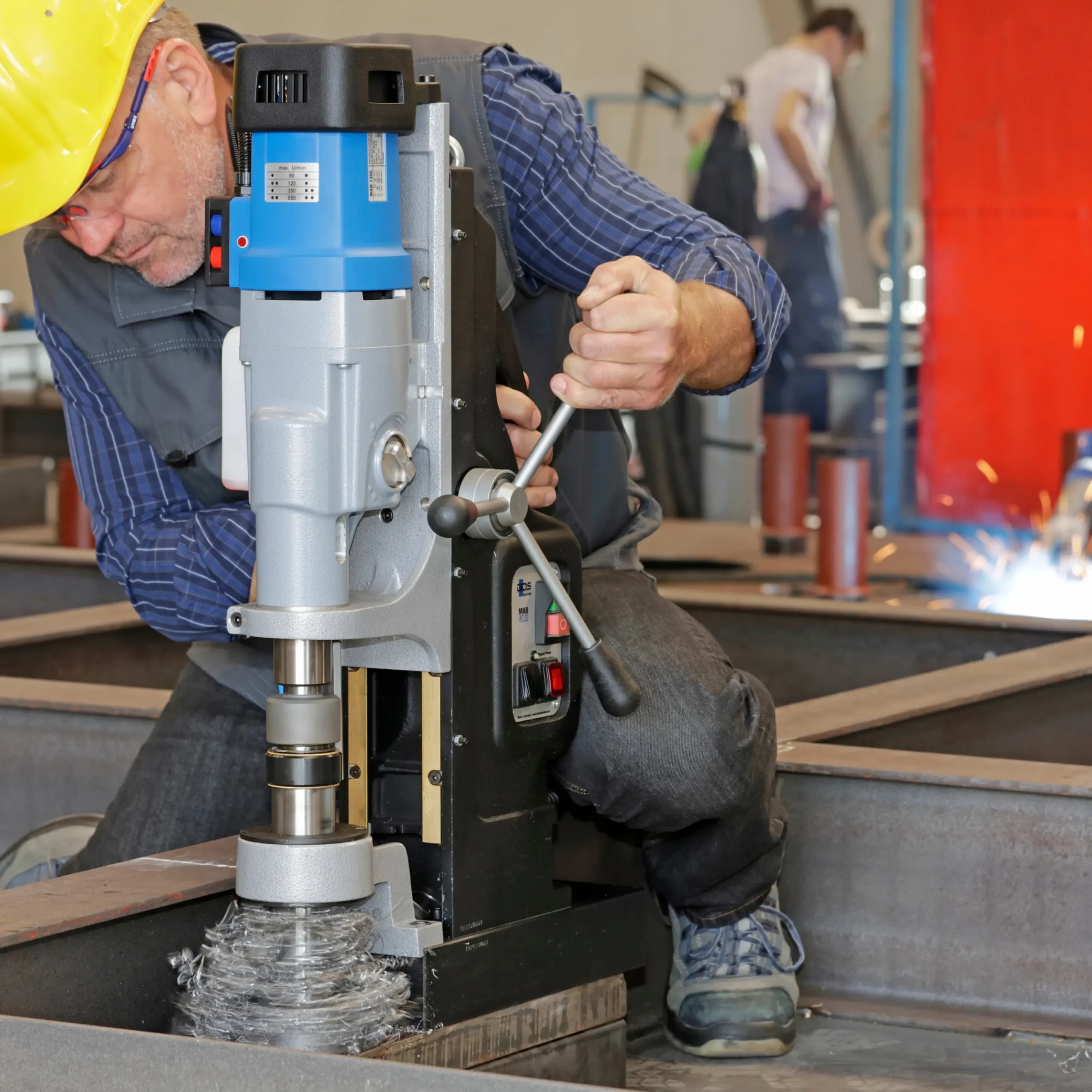

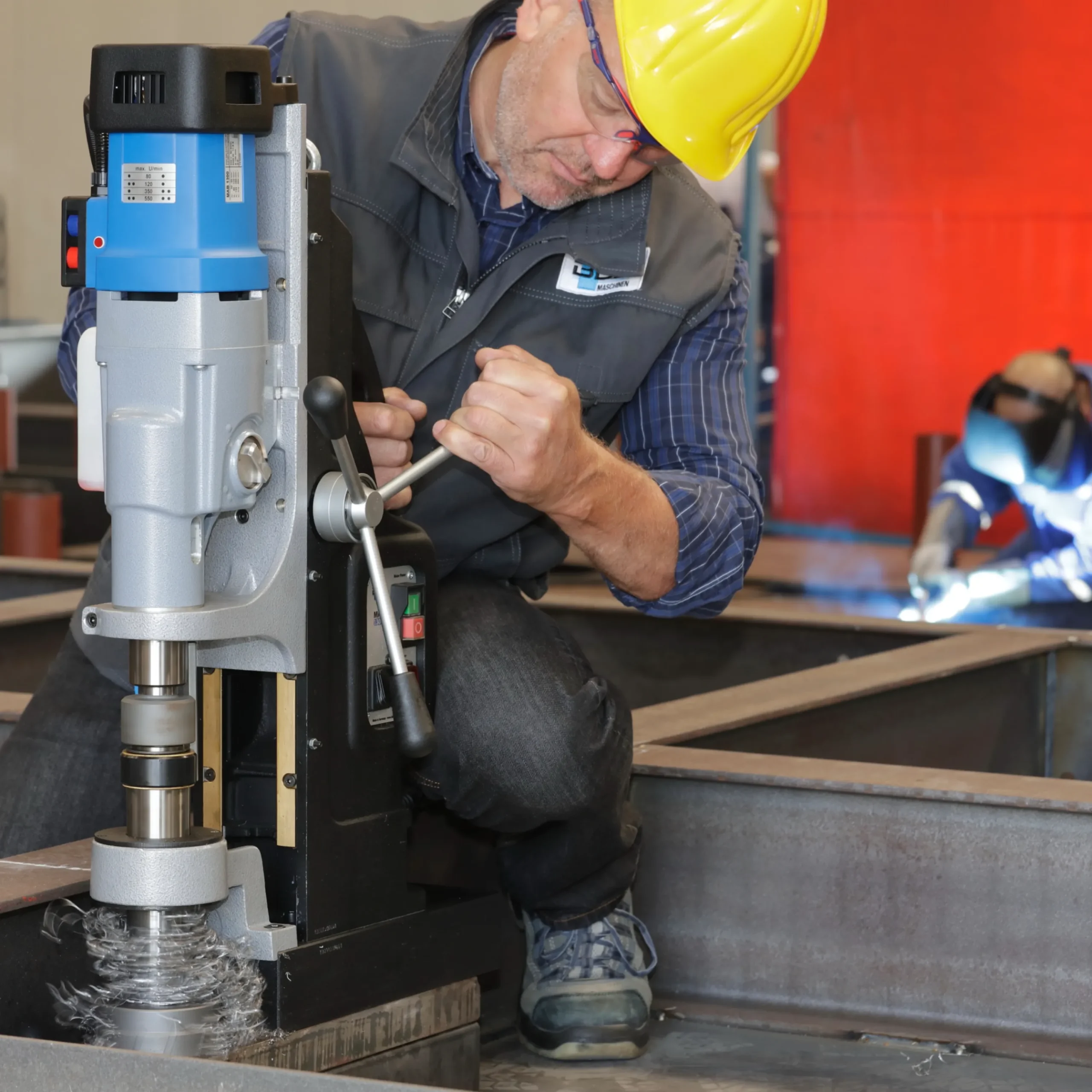

The MAB 1300 magnetic core drilling machine sets new benchmarks in heavy-duty industrial drilling. Powered by a 2,300 W motor with Servo Assist Power Feed, it delivers effortless operation, maximum torque, and outstanding efficiency. Designed for core drilling up to Ø 130 mm, tapping up to M42, and countersinking up to 80 mm, it represents BDS engineering excellence.

With four mechanical speed settings and an MT4 Morse taper, the MAB 1300 ensures precise control and smooth performance. Advanced safety features, triple coil magnet, and robust construction make it the ultimate solution for the toughest industrial applications.

Made in Germany
Power Assist Feed Servo Motor
Morse Taper 4

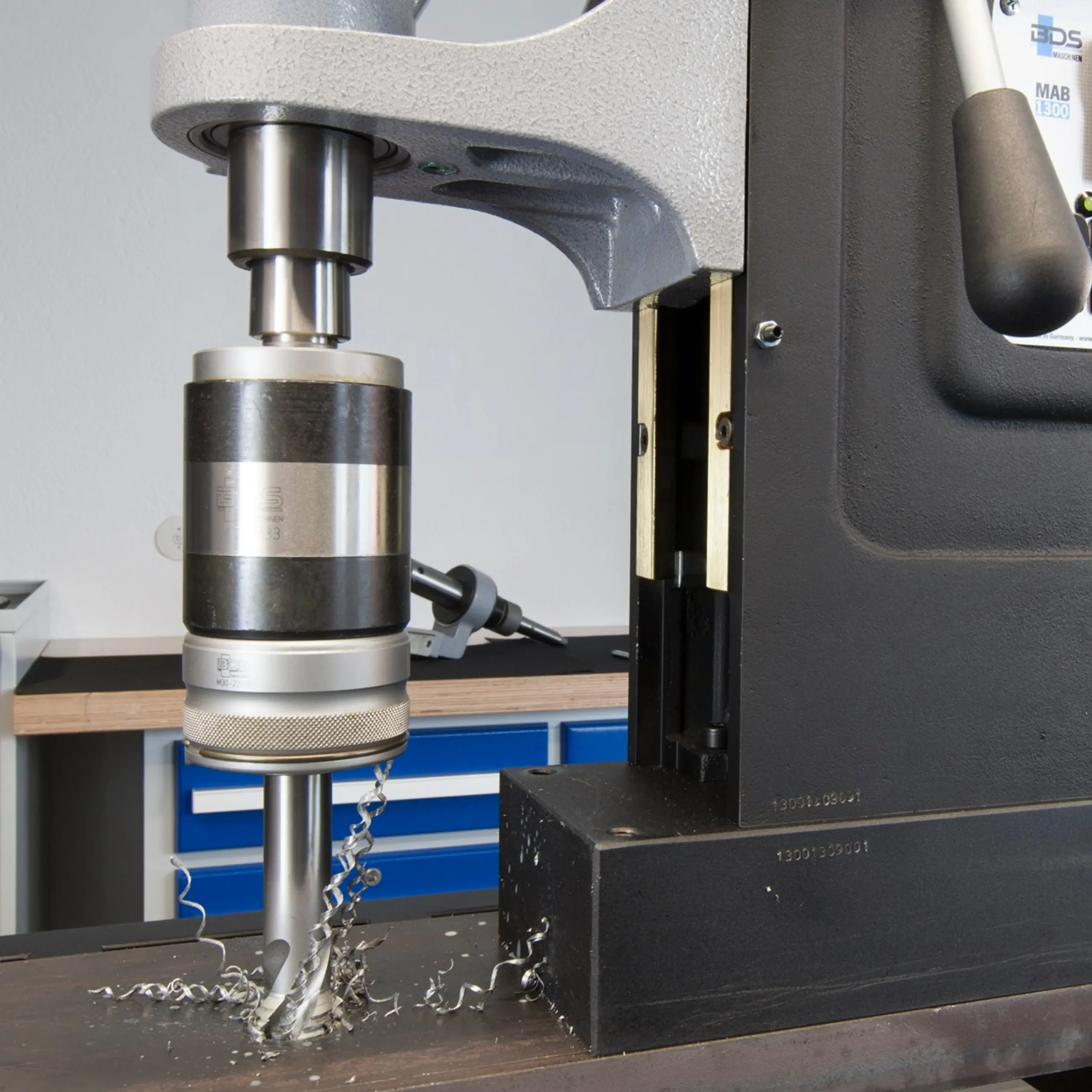

Drilling, Tapping, Countersink & Reaming
Reversible Motor
Variable Speed Control
Variable Torque Control
Full Wave Control Electronics
Magnet Adhesion Indicator
Overheat Protection
Safety Friction Clutch
Carbon Brush Wear Indicator
Oil Bath Gearbox
Integrated Coolant Tank
Permanent Internal Lubrication
Triple Coil Magnet

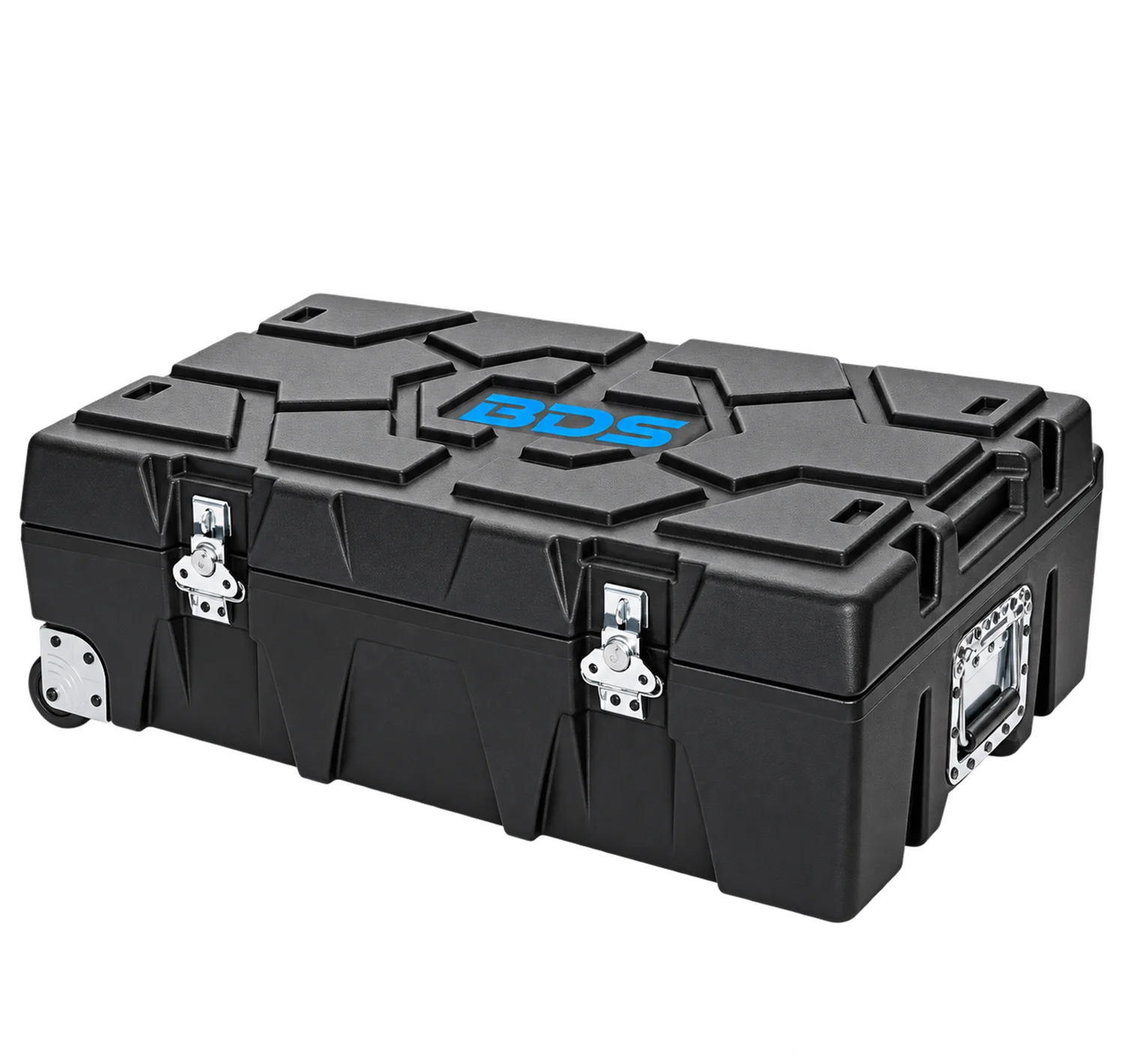

Heavy Duty Carry Case with Wheels

Technical Specifications

CORE DRILL MAX. Ø HSS/TCT:
130 mm (6") upto 30 mm (1'') depth
CORE DRILL CUTTING DEPTH MAX.:
110 mm (3'')
THREAD CUTTING Ø MAX.:
M42 (1-5/8")

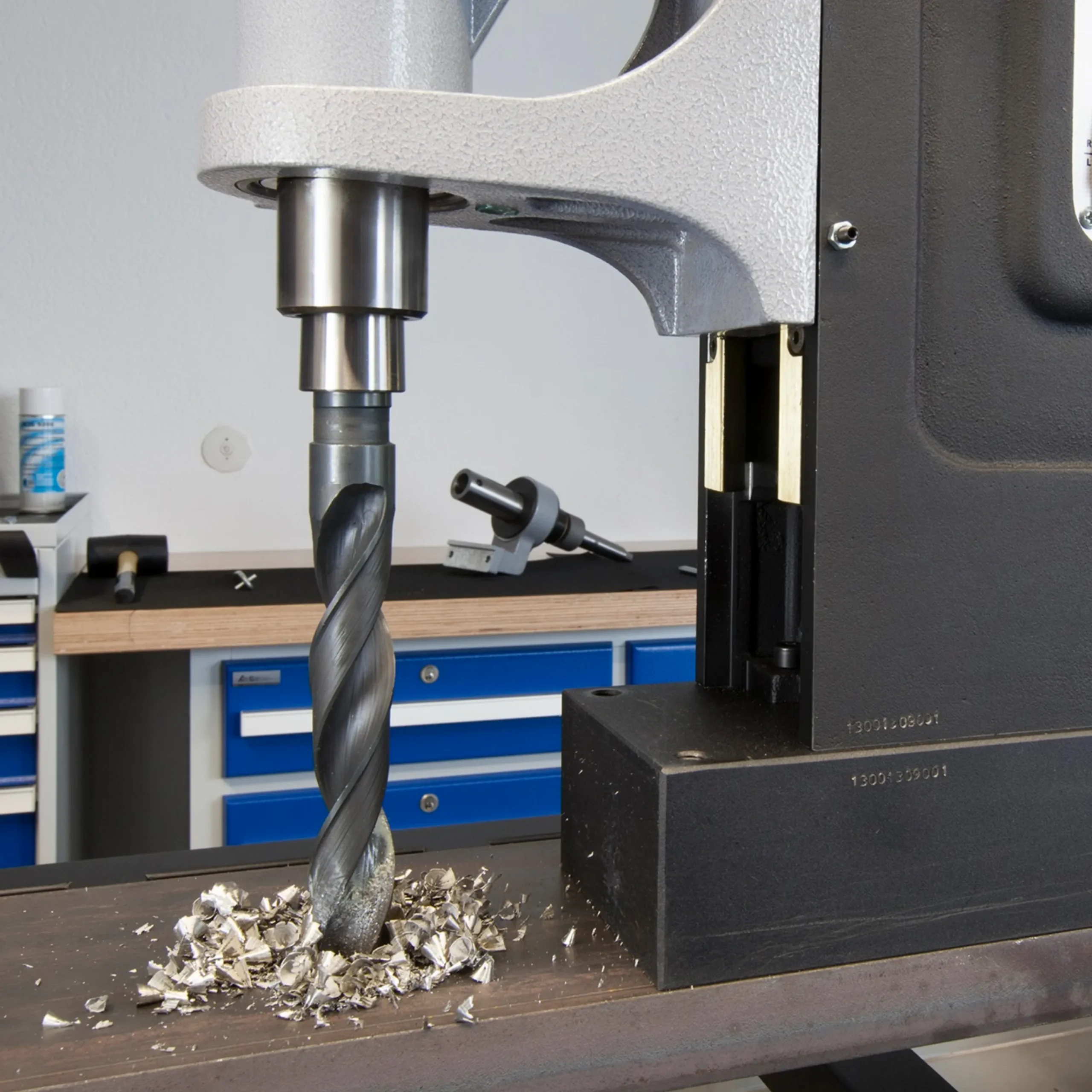

TWIST DRILL Ø MAX.:
45 mm (1-3/4")
REAMING Ø MAX.:
50 mm (2-1/2")
COUNTERSINKING Ø MAX.:

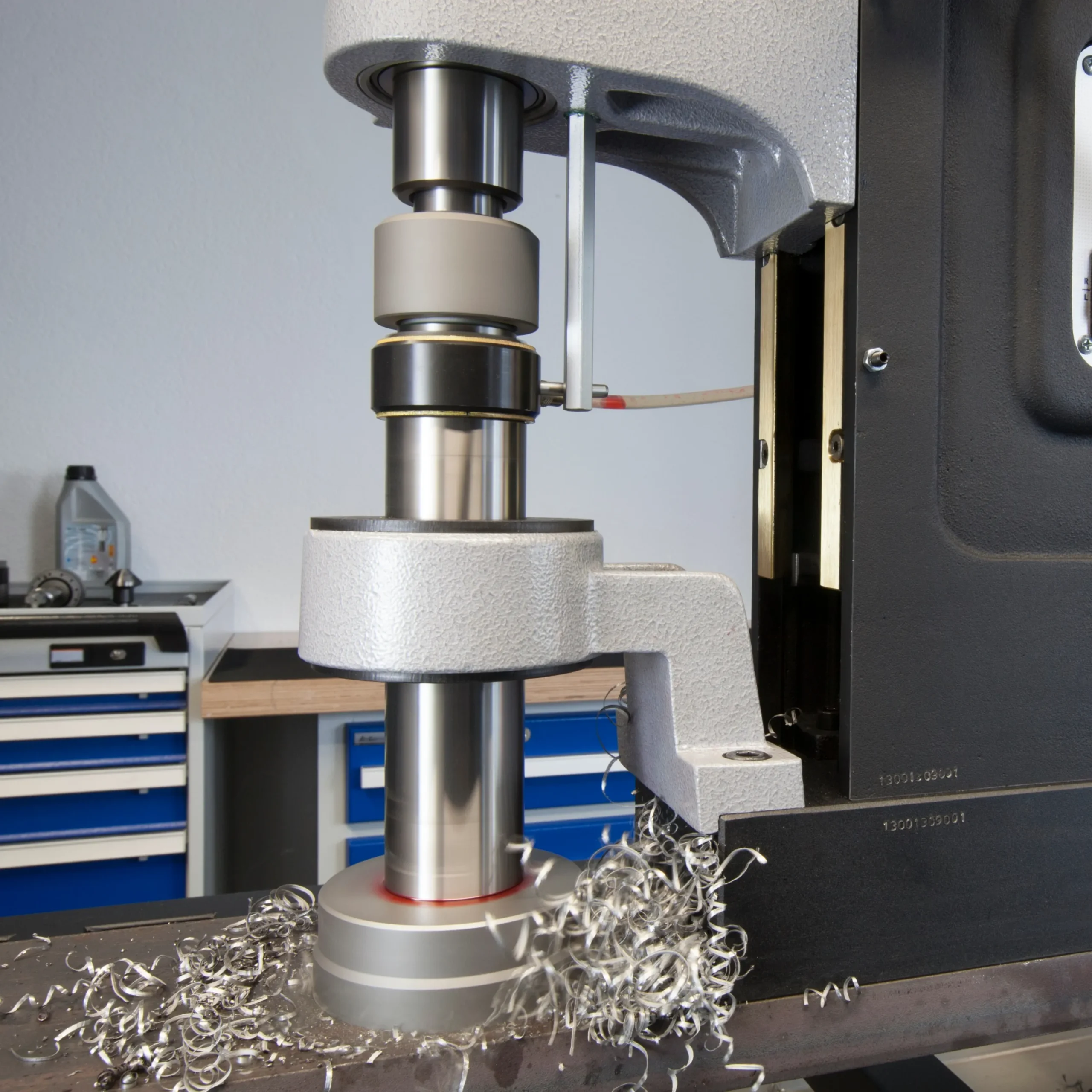

80 mm (3 ⅛″)
MOTOR OUTPUT :
2300 Watts (20 Amp)
VOLTAGE:
230 Volts or 110/125 Volts AC
STROKE:
85/310 mm (3.35" / 12" without retainer)
WEIGHT:
51 Kg. (112 lbs.)
SPINDLE TAPER:
Morse Taper MT4
KEYLESS ARBOR ( 19MM WELDON ¾“):
--------
SPEED GEARS:
4
SPEED RANGE (MIN-1):
30-180; 50-120; 130-350; 210-550
VARIABLE SPEED CONTROL:
VARIABLE TORQUE CONTROL:
OIL BATH GEARBOX:
REVERSIBLE MOTOR:
FULL WAVE CONTROL ELECTRONICS:
MAGNET INDICATOR:
OVERHEAT PROTECTION:
CARBON BRUSH WEAR INDICATOR:
SAFETY CLUTCH:
Power Assist Feed Servo Motor:

Scope of Delivery

CARRY CASE
ZHK 1300
EJECTOR PIN
ZAK 075, 090, 100, 120
TAPER DRIFT / ADAPTER
ZAP 200
EJECTOR DRIFT
ZAS 004
SAFETY LASHING STRAP
4000161
ALLEN KEY
911058(6mm) 8010251(4mm), 8010381(8mm)
USER MANUAL
