eMAB 450
CORDLESS, BRUSHLESS, LIMITLESS

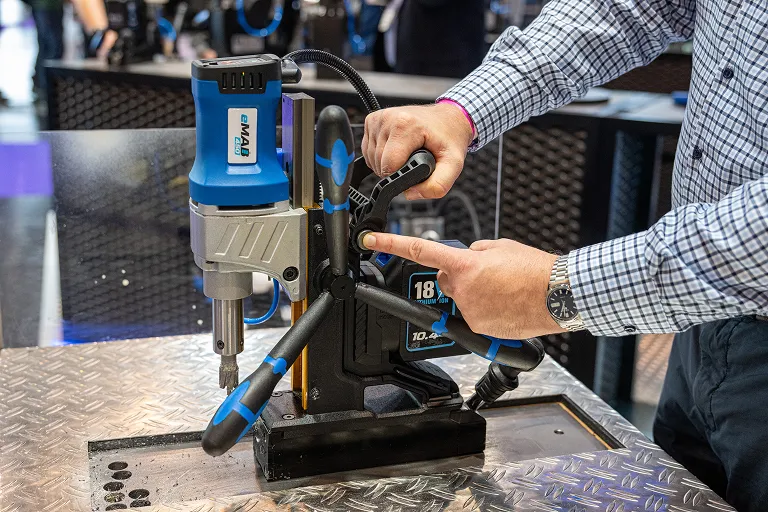

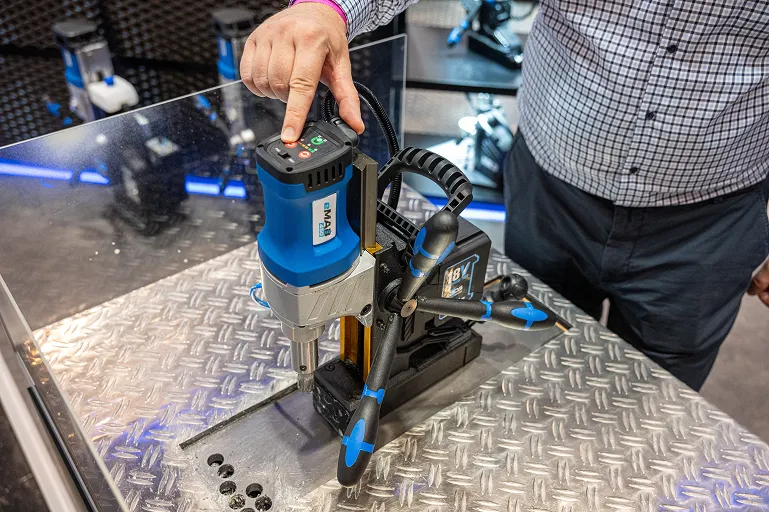

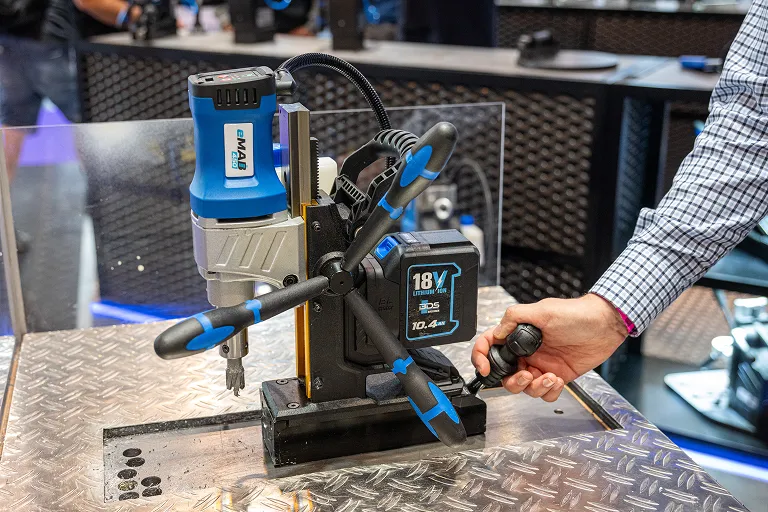

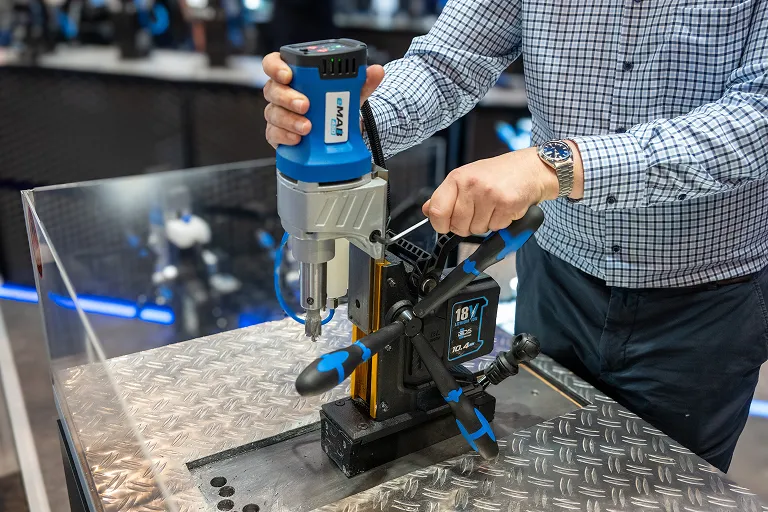

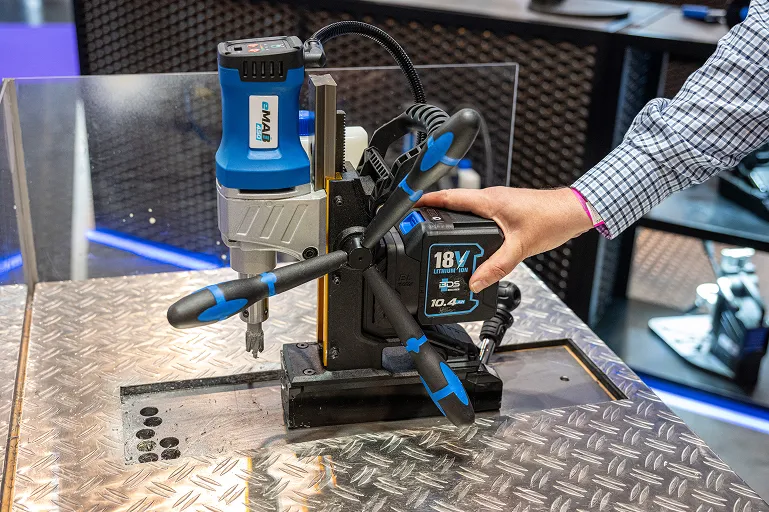

Experience the next generation of drilling freedom with the new cordless magnetic core drilling machine. Powered by an 18 V / 10.4 Ah battery, it delivers precision, performance, and mobility — no cables, no limits. The high-efficiency brushless full-copper motor ensures long life, low maintenance, and maximum torque. With a strong permanent magnet for secure holding and reversible rotation, it’s perfect for demanding jobs on construction sites and in assembly. Engineered in Germany for true professionals who demand power, durability, and flexibility anywhere.
Experience the next generation of drilling freedom with the new cordless magnetic core drilling machine. Powered by an 18 V / 10.4 Ah battery, it delivers precision, performance, and mobility — no cables, no limits. The high-efficiency brushless full-copper motor ensures long life, low maintenance, and maximum torque. With a strong permanent magnet for secure holding and reversible rotation, it’s perfect for demanding jobs on construction sites and in assembly. Engineered in Germany for true professionals who demand power, durability, and flexibility anywhere.
-
Brushless Motor -
Permanent Magnet
-
Suitable for pipes ≥ Ø 80 mm
-

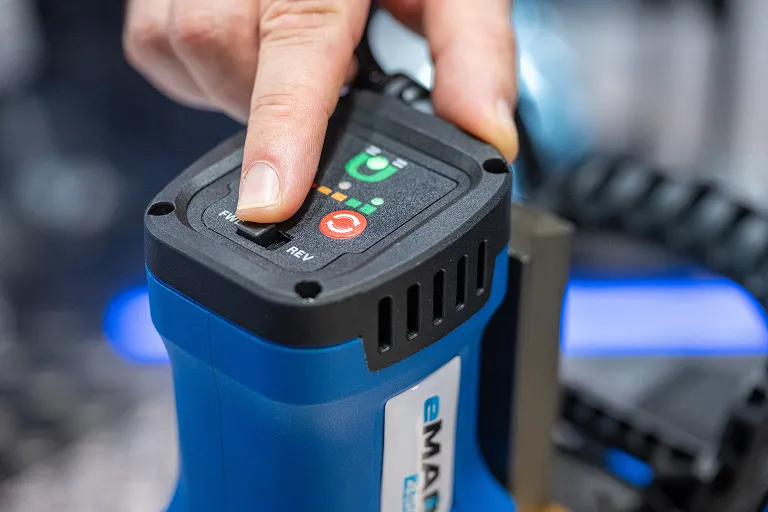

Reversible Motor
-
Variable Speed Control
-
Adjustable Motor Slide
-

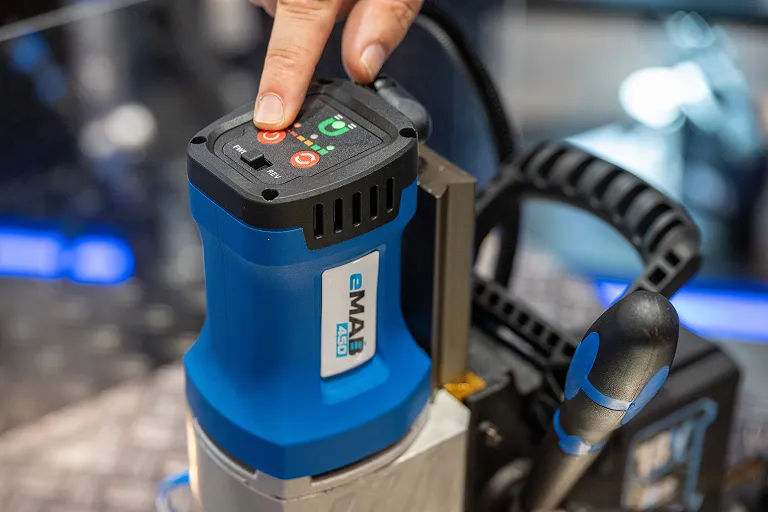

Magnet Indicator
-
Adjustable Lifting Handle
-
Ergonomic Handle
-
Left/Right-mount handle
-

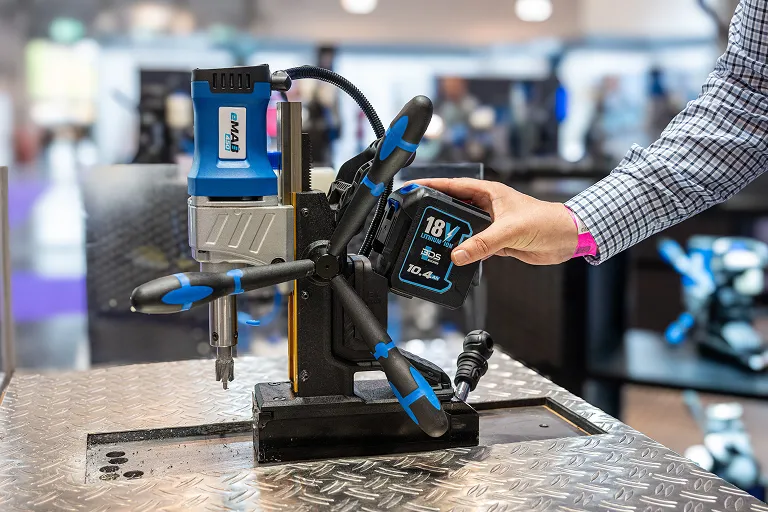

Lithium-Ion Battery 18V / 10.4 Ah
-
Heavy Duty Carry Case
Brushless MotorTechnical Specifications
-
CORE DRILL MAX. Ø HSS/TCT:
36/40 mm (2-1/16") -
CORE DRILL CUTTING DEPTH MAX.:
55 mm (2-3/8") -
THREAD CUTTING Ø MAX.:
M16 (5/8") -
TWIST DRILL Ø MAX.:
18 mm (7/8'') -
REAMING Ø MAX.:
18 mm (7/8'') -
COUNTERSINKING Ø MAX.:
40 mm (2-1/16") -
MOTOR OUTPUT:
1100 Watts -
VOLTAGE:
18 Volt -
STROKE:
135 mm (5 5/16″) -
WEIGHT:
13 Kg. (25.4 lbs.) -
SPINDLE TAPER:
Direct -
ARBOR:
Direct arbor 19 mm Weldon ¾“ -
SPEED GEARS:
1 -
SPEED RANGE (MIN-1):
134, 189, 246, 298, 355 -
VARIABLE SPEED CONTROL:
-
REVERSIBLE MOTOR:
-
MAGNET INDICATOR:
-
BRUSHLESS MOTOR:
-
PREMANENT MAGNET:
Scope of Delivery
CARRY CASE
ZHK 400
EJECTOR PIN
ZAK 075, 100

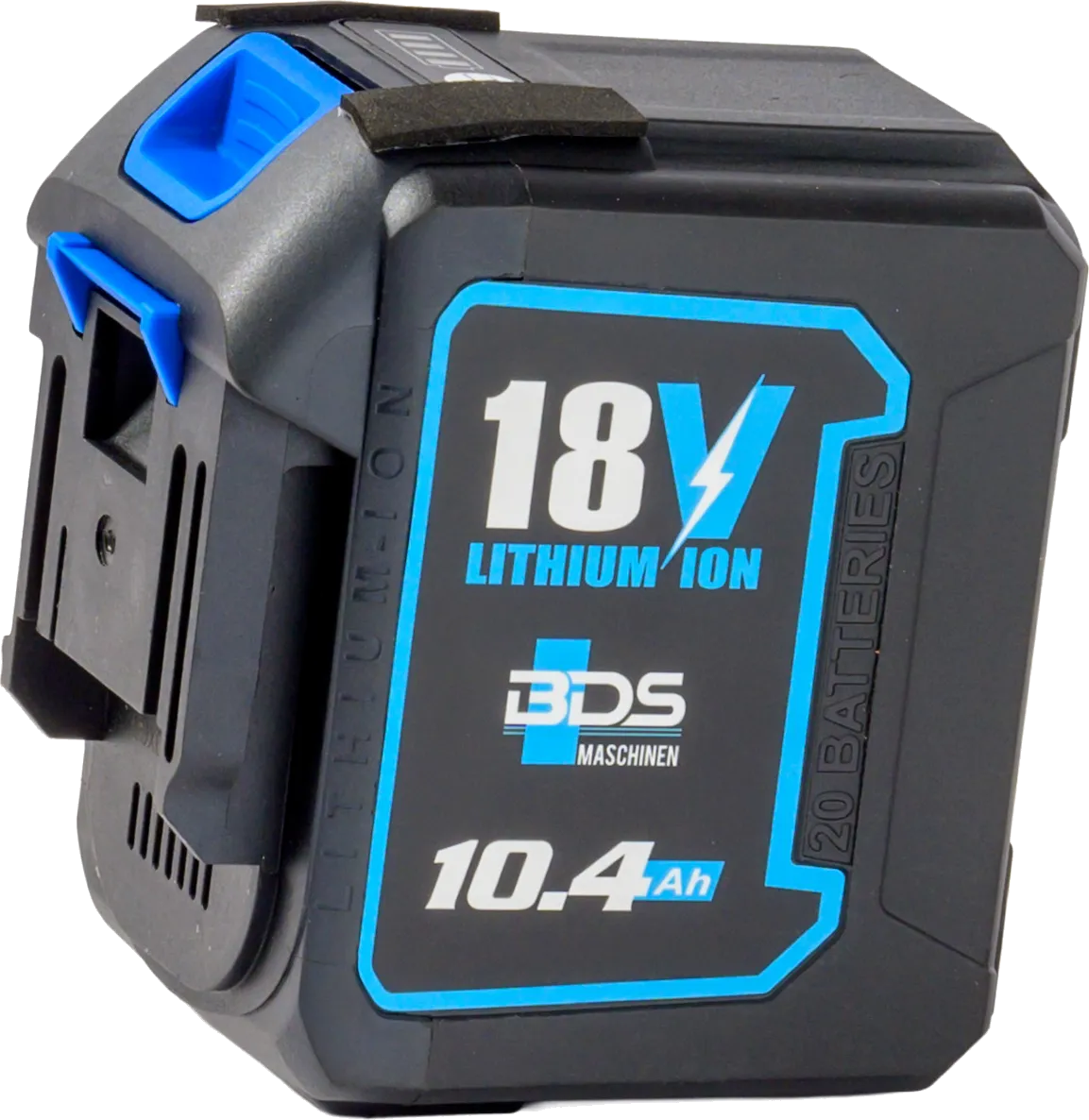

BATTERY (18V, 10.4 AH LI-ION)
AKKU-18V10.4

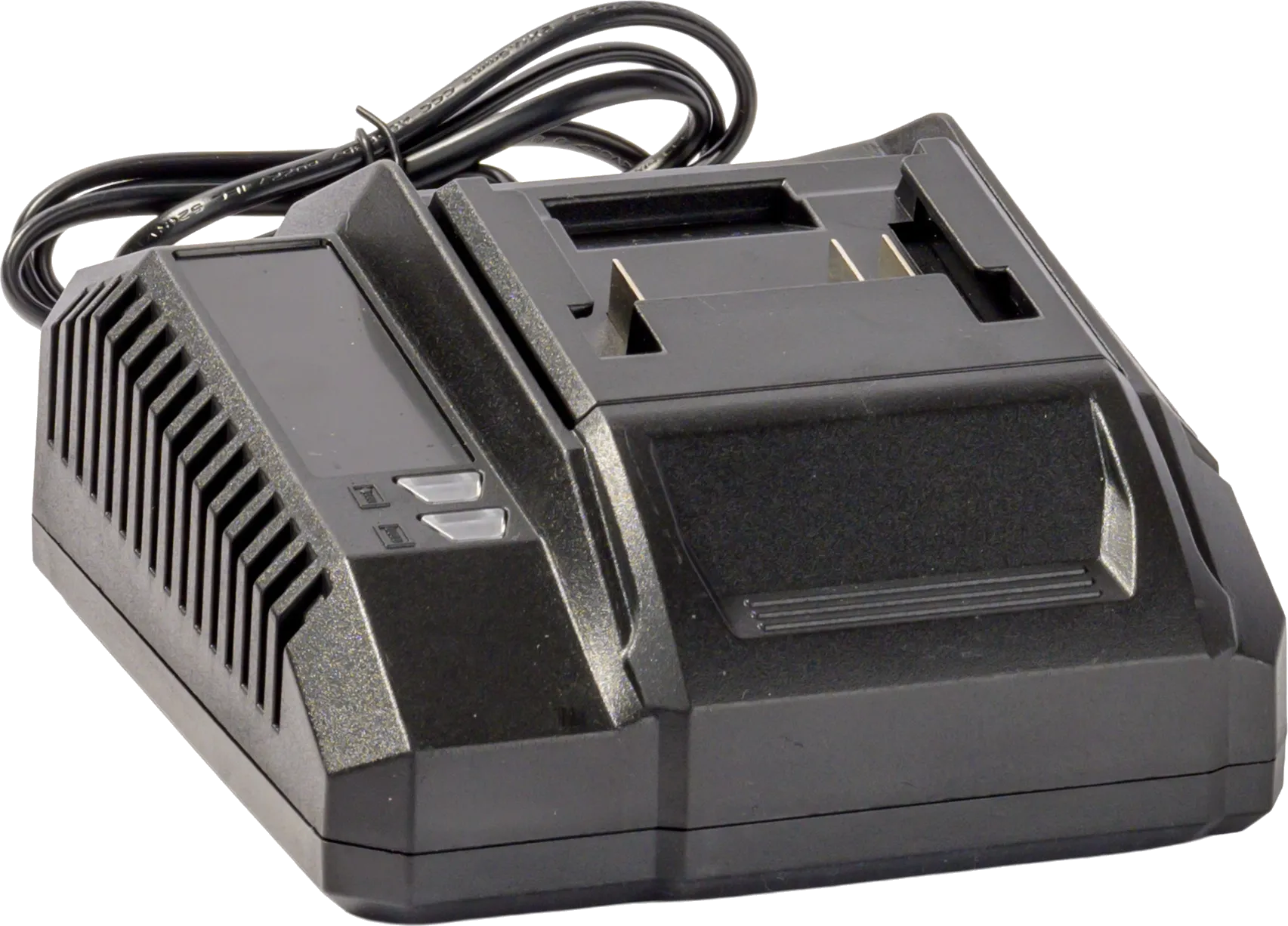

BATTERY CHARGER
DOCK-18
SAFETY LASHING STRAP
4000161
ALLEN KEY
- USER MANUAL
