CARBIDE SERIES ANNULAR CUTTERS
HEAVY DUTY TCT CORE DRILLS
Carbide annular cutters are heavy-duty core drills for metal equipped with precision-brazed tungsten carbide tips (TCT). Designed for drilling hard and abrasive materials, they deliver high cutting stability, exceptional wear resistance, and extremely long tool life. Ideal for structural steel, stainless steel, cast iron, and demanding industrial drilling applications.
Engineered in Germany, TCT annular cutters for metal drilling ensure fast penetration, clean holes, and reduced vibration even in tough materials. The carbide cutting edges enable higher cutting speeds and improved productivity. Perfect for large diameter drilling with magnetic drilling machines in steel construction, fabrication workshops, and heavy-duty industrial environments.
|
|
|
|
||
|---|---|---|---|---|---|

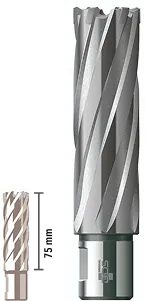

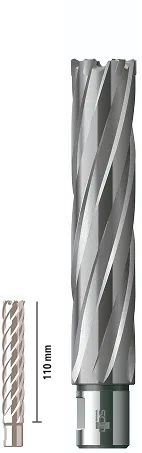

| SHORT | LONG | OVER LONG | EXTRA LONG | ||
|
QUALITY | Tungsten Carbide Tip | Tungsten Carbide Tip | Tungsten Carbide Tip | Tungsten Carbide Tip |
|
ARTICLE NR. | HKK | HKL | HKX-L | HKE-L |
|
CUTTING DEPTH | 30 mm (1-3/16″) | 55 mm (2-3/16″) | 75 mm (2- 61/64″) | 110 mm (4-5/16″) |
|
DIAMETER | 12 - 150 mm | 12 - 100 mm | 18 - 120 mm | 20 - 120 mm |
|
SHANK | ||||
| ⌀12-60 mm | 19 mm Weldon (3/4″) | 19 mm Weldon (3/4″) | 19 mm Weldon (3/4″) | 19 mm Weldon (3/4″) | |
| From ⌀61 mm | 32 mm Weldon (1-1/4'') | 32 mm Weldon (1-1/4'') | 32 mm Weldon (1-1/4'') | 32 mm Weldon (1-1/4'') | |
|
EJECTOR PIN | ||||
| ⌀12-60 mm | ZAK 075 | ZAK 100 | ZAK 225 | ZAK 275 | |
| From ⌀61 mm | ZAK 090 | ZAK 120 | ZAK 245 | ZAK 275 |
ADVANTAGES OF CORE DRILLS WITH 8% COBALT
TUNGSTEN CARBIDE TIP (TCT)
Equipped with precision brazed tungsten carbide tips (TCT) for extreme wear resistance, high cutting stability, and exceptionally long tool life in demanding industrial drilling applications.
DRILLING HARD MATERIALS
Ideal for drilling hard and abrasive materials such as high-strength steel, stainless steel, cast iron, and special alloys. TCT technology ensures reliable performance even under the highest loads.
LARGE DIAMETERS & HIGH PRODUCTIVITY
Optimized for large hole diameters, the TCT annular cutter design delivers fast drilling progress, reduced machine load, and significantly higher productivity in serial and heavy-duty applications.
Recommended Lubricants
SPEED CALCULATOR APP
THE PRECISE SOLUTION FOR OPTIMAL CUTTING SPEEDS With the BDS Speed Calculator App, you can quickly and reliably determine the perfect speed for core drills and magnetic drilling machines. The correct cutting speed prevents overheating, reduces tool wear, and ensures clean, precise drilling results. The app provides precisely calculated values for maximum tool life, optimal performance, and accurate results for every drilling operation – including information on which gear you need to select on the magnetic drilling machine.
