eRailMAB 450
BATTERY OPERATED RAIL DRILLING MACHINE
The eRailMAB 450 is a battery operated rail drilling machine designed for modern track construction and maintenance work. Manufactured in Germany, it combines mobility with performance and allows drilling directly on site without power supply. The brushless motor ensures efficient operation, long service life and consistent drilling performance on different rail profiles.
The quick clamping system enables fast positioning on the rail, reducing setup time significantly. Variable speed control, reversible rotation and ergonomic handles provide safe and comfortable handling during daily use. Powered by a powerful 18 V / 10.4 Ah lithium-ion battery and supplied in a heavy-duty carry case, the machine is ideal for railway service teams.
The eRailMAB 450 is a battery operated rail drilling machine designed for modern track construction and maintenance work. Manufactured in Germany, it combines mobility with performance and allows drilling directly on site without power supply. The brushless motor ensures efficient operation, long service life and consistent drilling performance on different rail profiles.
The quick clamping system enables fast positioning on the rail, reducing setup time significantly. Variable speed control, reversible rotation and ergonomic handles provide safe and comfortable handling during daily use. Powered by a powerful 18 V / 10.4 Ah lithium-ion battery and supplied in a heavy-duty carry case, the machine is ideal for railway service teams.
-
Brushless Motor -
Quick Clamping System
-
Suitable for Railway Track Drilling
-
Reversible Motor
-
Variable Speed Control
-
Adjustable Motor Slide
-
Magnet Indicator
-
Adjustable Lifting Handle
-
Ergonomic Handle
-
Left/Right-mount handle
-
Lithium-Ion Battery 18V / 10.4 Ah
-
Heavy Duty Carry Case with Wheels
Technical Specifications
-
CORE DRILL MAX. Ø HSS/TCT:
36 mm (2-1/16") -
CORE DRILL CUTTING DEPTH MAX.:
55 mm (2-3/8") -
THREAD CUTTING Ø MAX.:
M16 (15/16") -
TWIST DRILL Ø MAX.:
18 mm (7/8'') -
REAMING Ø MAX.:
18 mm (7/8'') -
COUNTERSINKING Ø MAX.:
40 mm (2-1/16") -
MOTOR OUTPUT:
1100 Watts -
VOLTAGE:
18 Volt -
STROKE:
135 mm (5 5/16″) -
WEIGHT:
13 Kg. (25.4 lbs.) -
SPINDLE TAPER:
Direct -
ARBOR:
Direct arbor 19 mm Weldon ¾“ -
SPEED GEARS:
1 -
SPEED RANGE (MIN-1):
134, 189, 246, 298, 355 -
Variable speed control:
-
Reversible motor:
-
Brushless Motor:
-
Premanent Magnet:
Scope of Delivery
-
CARRY CASE
ZHK 825 -
EJECTOR PIN
ZAK 075 -
BATTERY(18V, 10.4 Ah Li-Ion)
AKKU-18V10.4 -
BATTERY CHARGER
DOCK-18 -
EJECTOR DRIFT
ZAS 002 -
SAFETY LASHING STRAP
4000161 -
USER MANUAL
-

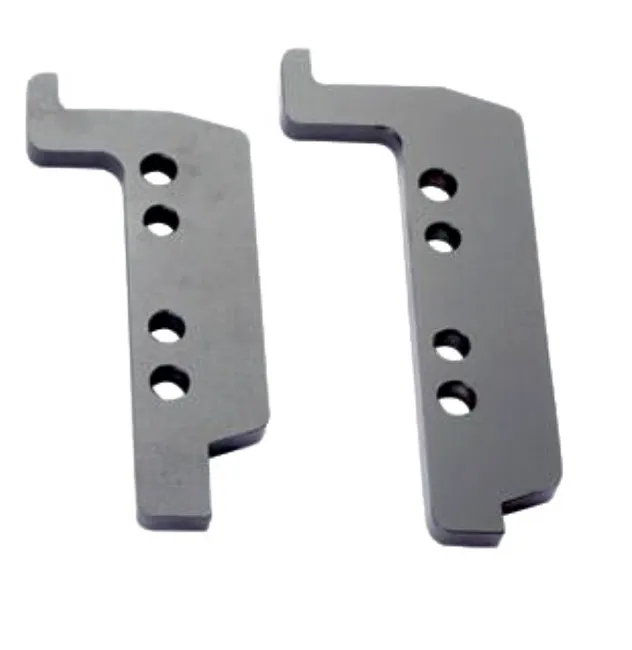

RAIL ADAPTER
1 Included, as per demand
