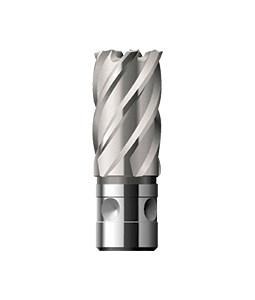

Series Quick-In HSS-Co 8-F Annular Cutters

Made in Germany

Ideal for quick-in recording system. 18 mm shaft for quick-in mounting system. 35 mm cutting depth. The made in Germany annular cutters from this series have outstanding heat resistance and wear protection. In combination with speed-controlled BDS magnetic core drilling machines, these annular cutters are suitable for machining fine-grained steels and rustproof materials. BDS recommends the BDS 5000 Cutting Oil for machining stainless steel.

  • High degree of heat resistance
  • Better wear protection
  • High cobalt content of 8%
  • Suitable for higher loads in fine-grained steels and rustproof materials
  • With 19 mm or 32 mm Weldon shank
  • Can be resharpened
The goal of this latest BDS product development was a performance-optimized core drill series with higher heat resistance and better wear protection. An increased cobalt content in special steel brought the desired results. In conjunction with speed-controlled BDS magnetic core drilling machines, these core drills are suitable for higher loads in fine-grained steels and stainless materials. The core drills can be reground, they retain their positive product properties.

Series Quick-In HSS-Co 8-F Annular Cutters

HSS-CO8 CORE DRILL FOR QUICK-IN RECORDING SYSTEM

Technical specifications

  Short
Quality HSS M42 Material
Article no. KBK-F
Cutting depth in mm 35
Diameter in mm 12-60
Weldon Shank 19 mm Quick-in
Ejector Pin ZAK 096
Lubricant BDS 5000
Carbide Coating ----

Product Video of Annular Core Cutters

Recommended Cutting Speed & Lubricant

  • Material
  • Fine-grain Steel<700 N/m2
  • Fine-grain Steel<1000 N/m2
  • Inox
  • Casting (depending on type)
  • Cutting Speed
  • 10-15 m/min
  • 10-15 m/min
  • 10-15 m/min
  • 15-20 m/min
  • Lubricant
  • Cutting Oil BDS 5000
  • Cutting Oil BDS 5000
  • Cutting Oil BDS 5000
  • Cutting Oil BDS 5000
