AutoMAB 350

AutoMAB 350

Ø 35 mm Automatic Feed Magnetic Drill

Technical Specs

Core drill short 30 mm (1-3/16")
12 - 35 mm (1-3/8")
Core dril long 55 mm (2-11/64")
12 - 35 mm (1-3/8")
Core drill extra-long 110 mm (4-21/64")
----
Thread cutting
----
Countersinking
----
Reaming
----
Twist drilling
----
Friction clutch
----
Permanent internal lubrication
Speed range 1
360 min-1
Speed range 2
----
Speed range 3
----
Speed range 4
----
Morse taper
----
Quick change drill chuck-system
----
Industrial arbor
----
Direct arbor
Weight
15 Kg (33 lbs)
Magnet Size
90 x 180 x 48 mm
Stoke
150 mm (5-29/32")
Voltage
230 V or 110 V AC
Motor Output
1050 Watt (9 Amp)
Swivel Base
----
Carbon brush wear control
----
CW/CCW rotation
----
Overheating protection
----
Magnet indicator
----
Full wave control electronics
----
Torque Control
----

The Premium AutoMAB 350 Automatic Feed Magnetic Drill, is a made in Germany fully automatic magnetic drill with automatic forward and reverse. Automatic machines are the future of magnetic drill technology due to its various advantages. Some of the advantages of automatic machines are 1. A single operator can operate multiple machines, 2. As the machine is independent operator errors which avoids tool breakage. 3. Even not very skilled operator can handle the machine.

The AutoMAB 350 automatic feed magnetic drills' premium features are Load Indicator which indicates the load of the machine, if the load is too high, the motor of the machine gets switched off automatically hence avoiding the tool breakage. Magnet Indicator which indicates the operator if the thickness of the material to be drilled or surface of the material is good enough for proper adhesion of the magnet. If the material is not suitable for the magnets adhesion the LED magnet indicator glows Red and the motor of the machine won't start, a very important safety feature. Automatic Stop which enables the motor of the machine to switch off once the complete reverse feed after drilling is achieved.

One of the very interesting features of the AutoMAB 350 automatic feed magnetic drill is that the machine also has n option to drill manually. This helps in a great way to manually locate the center of the hole or to drill very hard material.

Equipped with a German make 1050 Watt (10.5 Amp) motor, the AutoMAB 350 automatic magnetic drill is available in 230 Volts and 110 Volts in 50-60 Hz. The AutoMAB 350 is a single speed machine with a 19 mm (3/4'') direct Weldon arbor. The working stroke of the AutoMAB 350 automatic feed magnetic drill is 160 mm (3 1/3'').

This lightweight automatic feed magnetic drill weighs just 15 Kg. (33 lbs.) making it very portable and handy. The AutoMAB 350 automatic magnetic drill is equipped with modern LED switches for power and magnet. The AutoMAB 350 automatic magnetic drill is delivered in a robust carry case.

The drilling capacity of the AutoMAB 350 automatic feed magnetic drill 35 mm diameter (Ø 1-1/2") and 55 mm (2 -11/64'') cutting depth.

The other higher capacity of automatic magnetic drilling machines models are AutoMAB 450, MAB 825V and MAB 1300V

35 mm

Diameter Drilling

55 mm

Cutting Depth

1050 Watt

Powerful Motor

15 Kg

Weight

1-3/8"

2-11/64"

9 Amp

33 lbs.

Automatic feed & return

Manual drilling option

Load Indicator

LED Switches

Magnet indicator

Internal lubrication

Cooling tank

Weight 15 Kg

Ejector pins

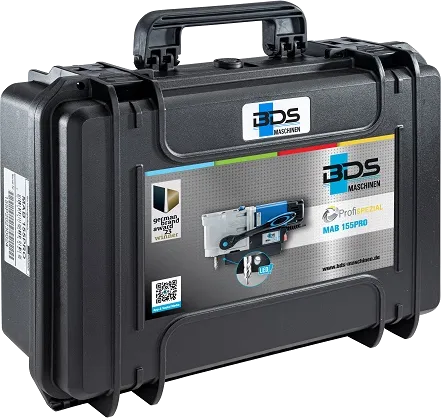

Carry case

safety lashing strap

Torx screwdriver

1 Operating manual
